SUPERIOR PERFORMANCE. Component level rated. Suitable for 10 Gigabit (10/100/1000/10000 Mb/s) up to 328 feet. Compatible with 23 to 24 AWG solid copper conductors. Supports PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W. Press-Fit Technology makes our product more reliable and increases transmission performance. Tested up to 500 MHz.

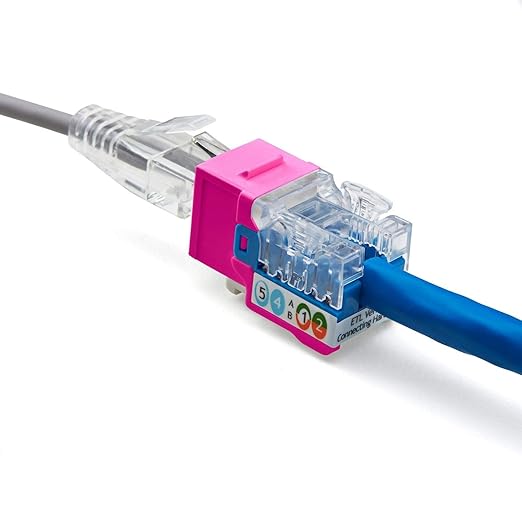

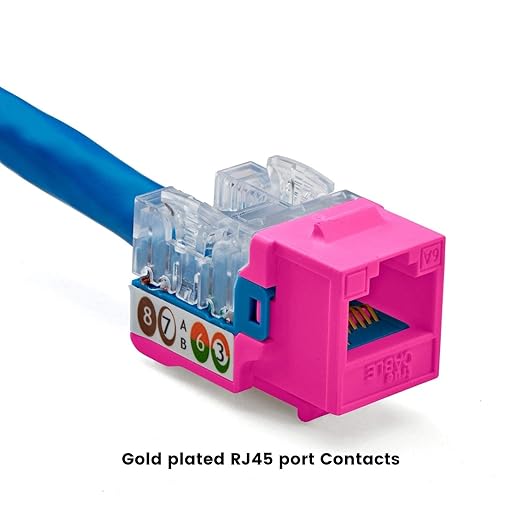

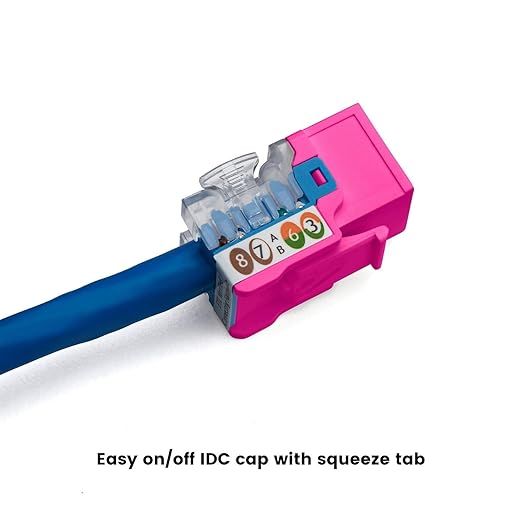

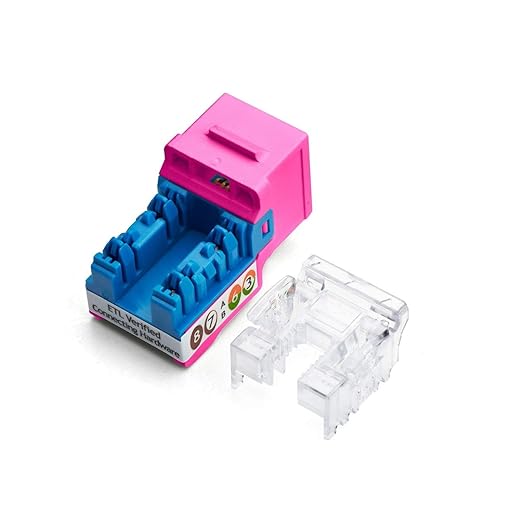

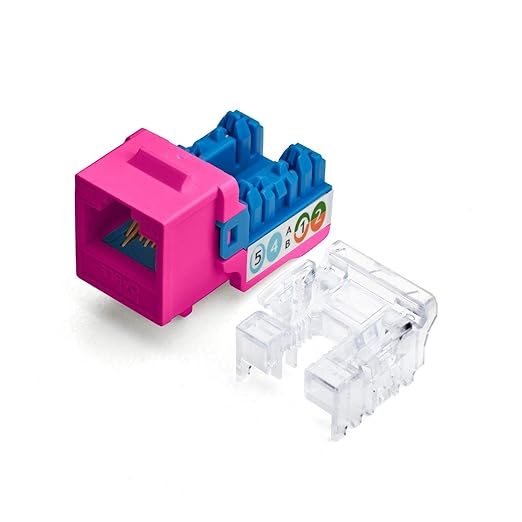

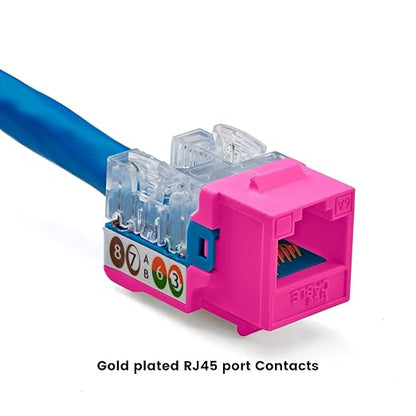

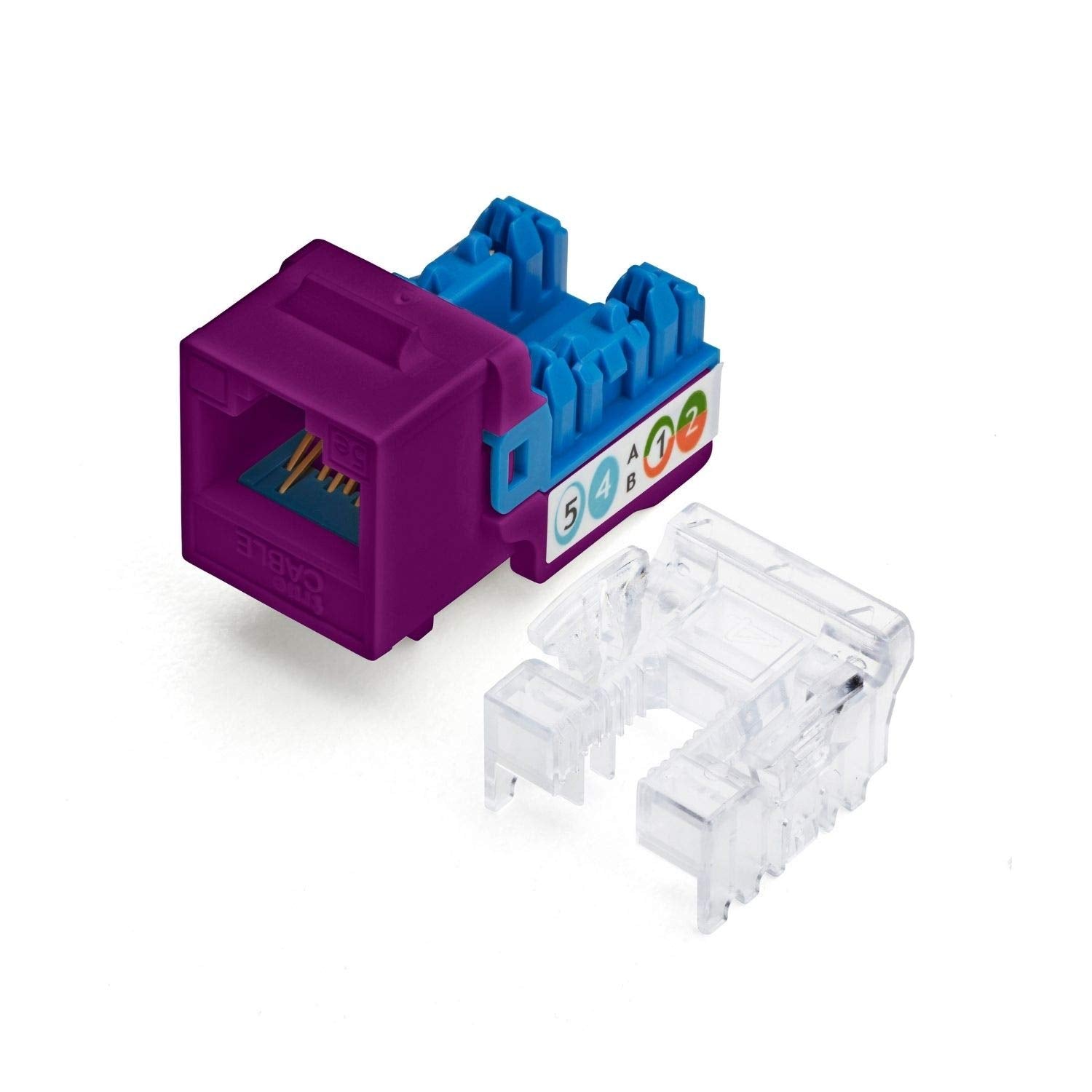

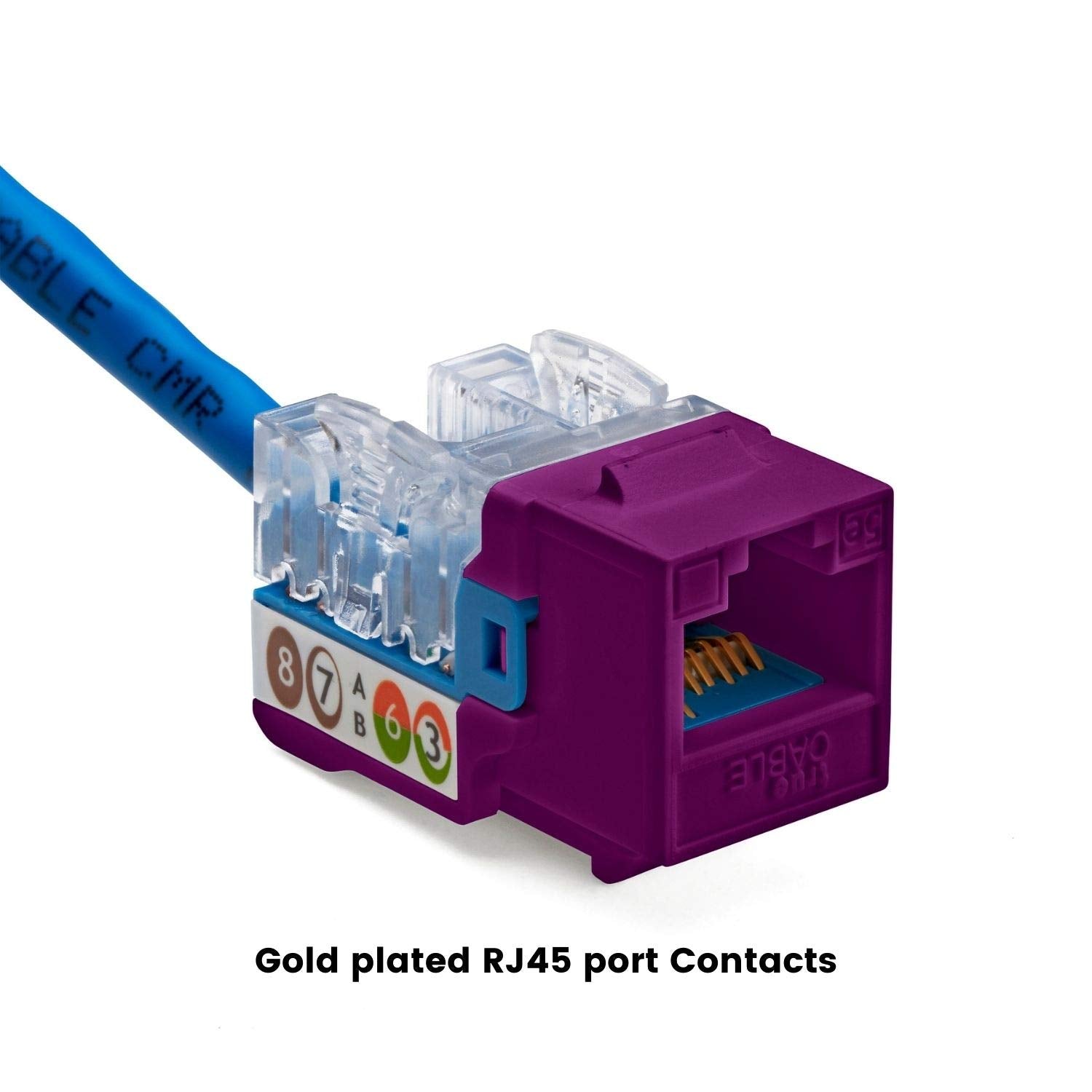

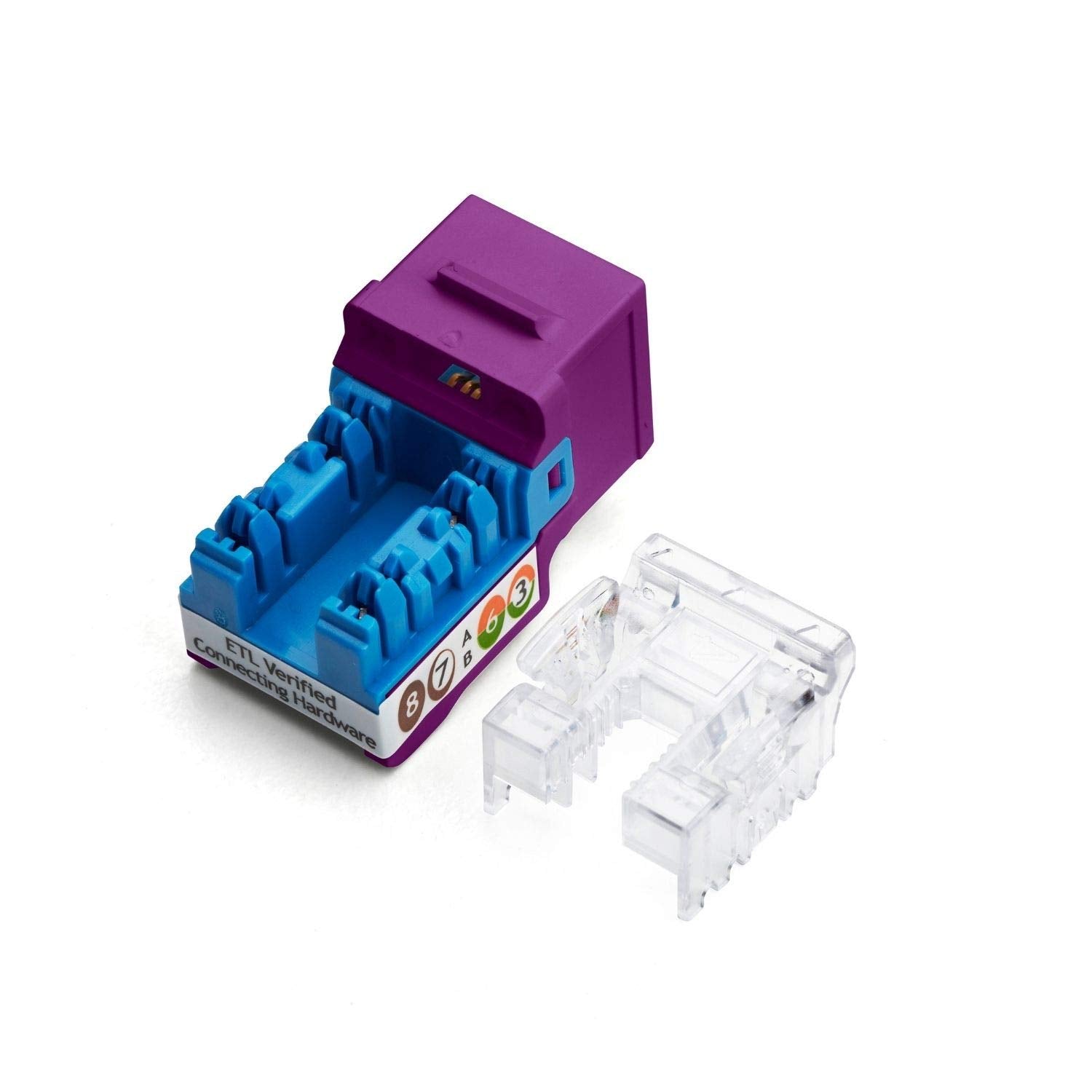

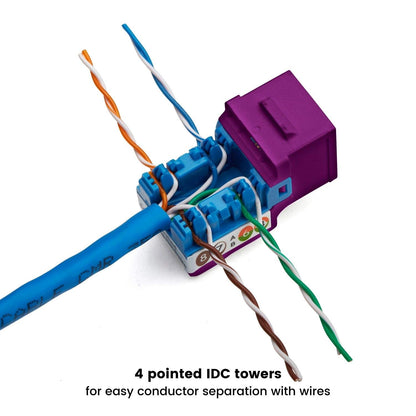

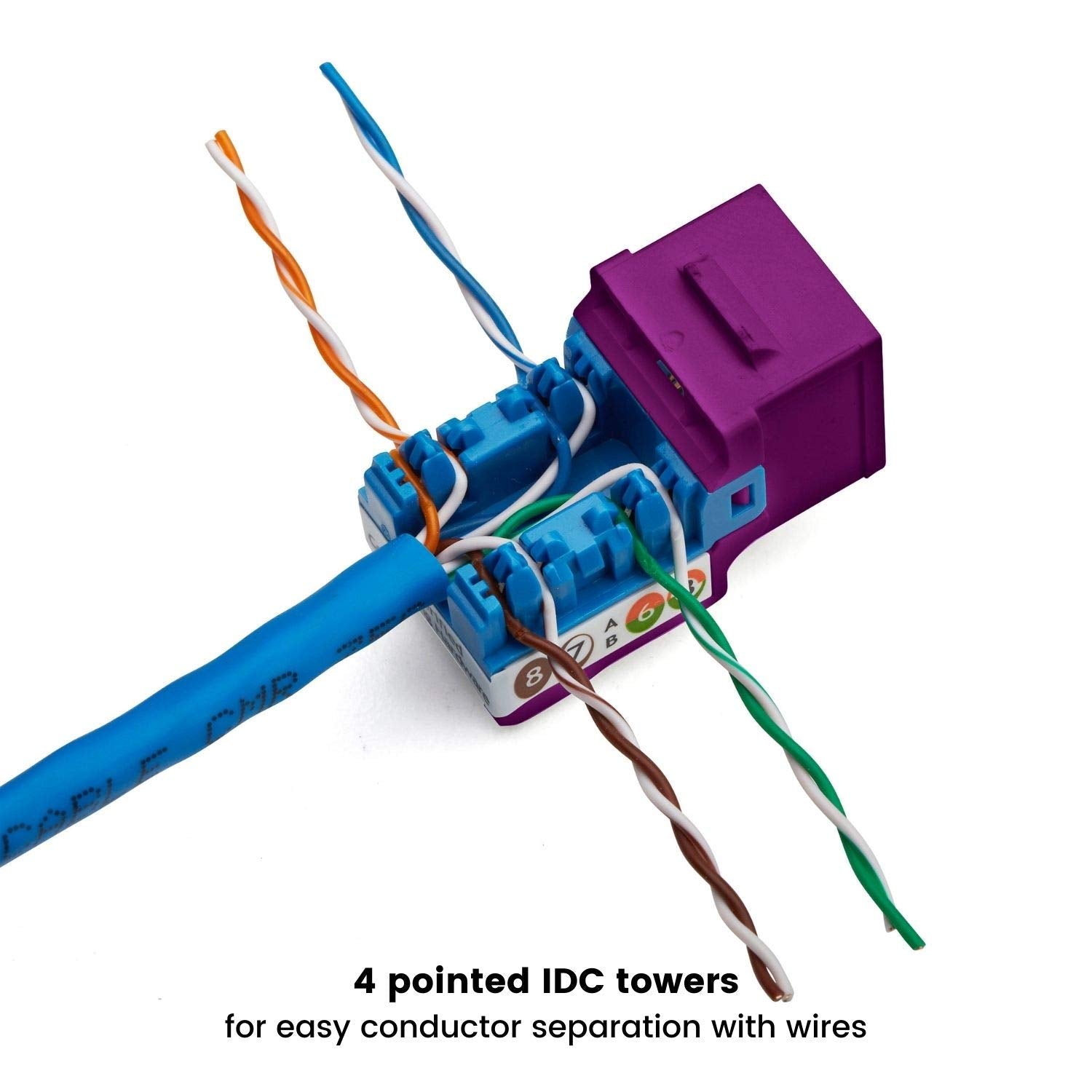

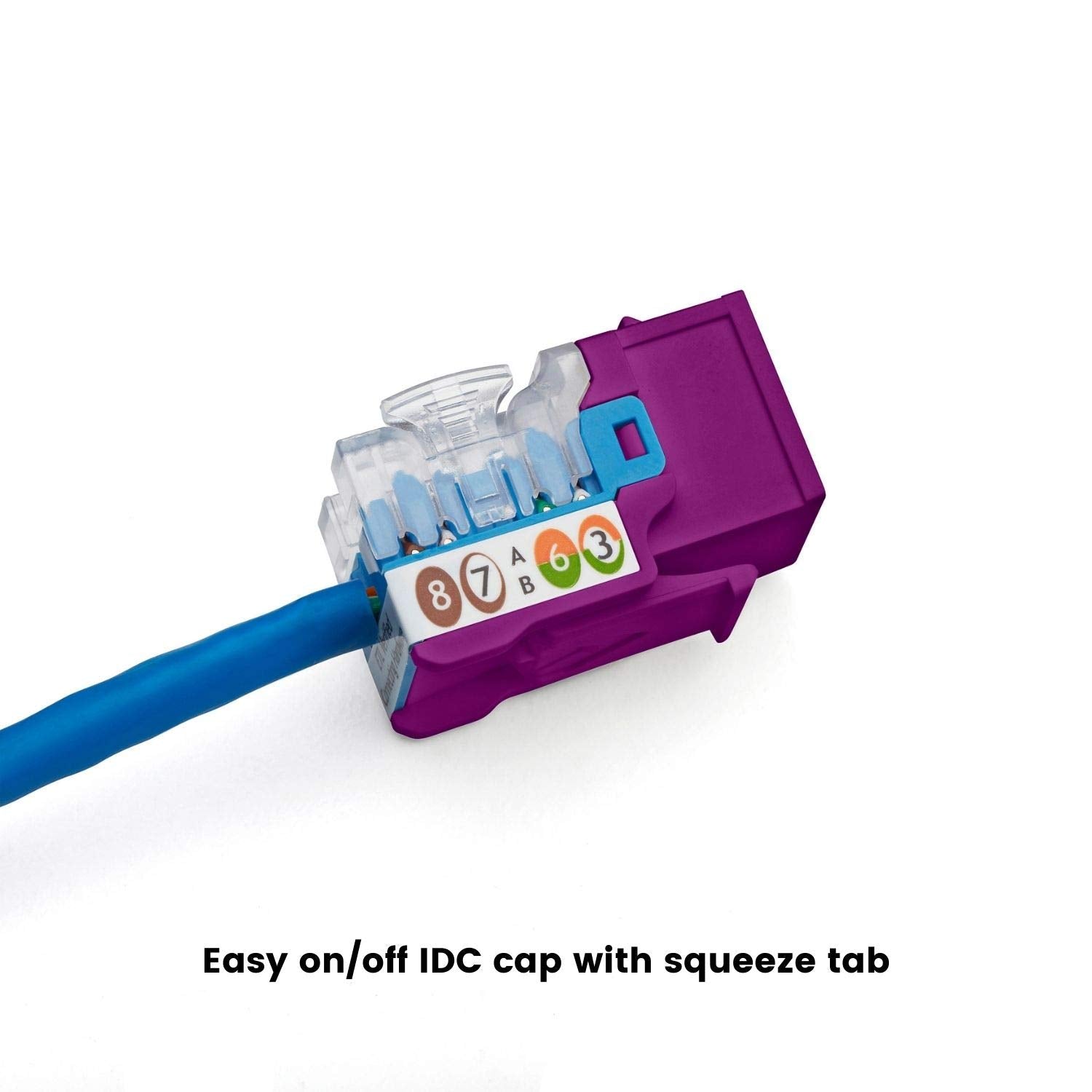

DURABLE. 90-degree design with IDC retaining cap. Tough ABS plastic construction. Highly visible colors printed on the side for easy T568A or T568B wiring. Corrosion-resistant nickel and tin-coated phosphor bronze termination prongs and gold plated RJ45 contacts.
VERSATILE. 100% compatible with any standard wall plate or patch panel. Compatible with our trueTERM (B088MLZXWQ) termination, trueIMPACT (B088N5MQYH), and U/UTP Ethernet cables.

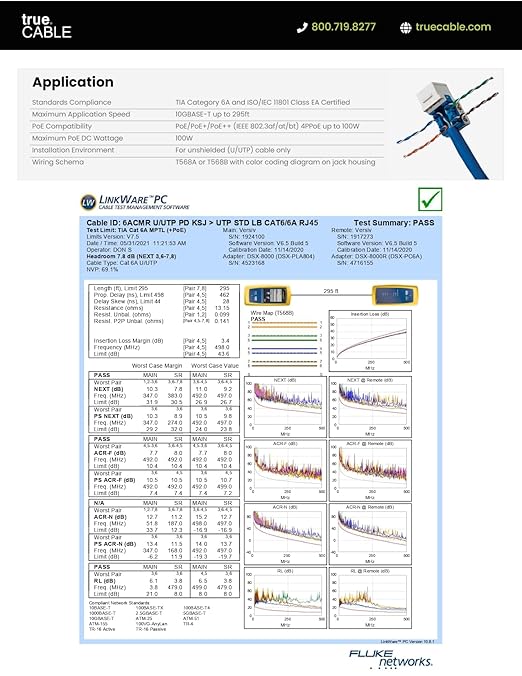

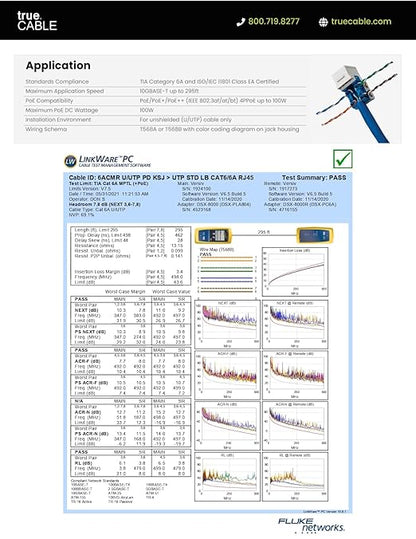

QUALITY GUARANTEED. ANSI/TIA 568 2.D Certified by trueCABLE. UL Listed, TAA compliant, ETL Verified, RoHS-2 compliant. Tested in the real world by real installers. Backed by our FOREVER WARRANTY.

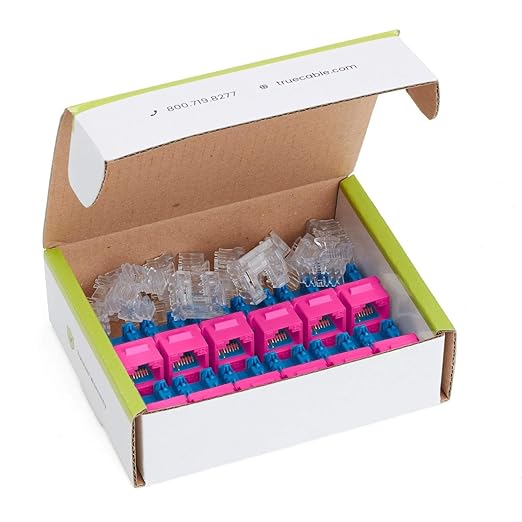

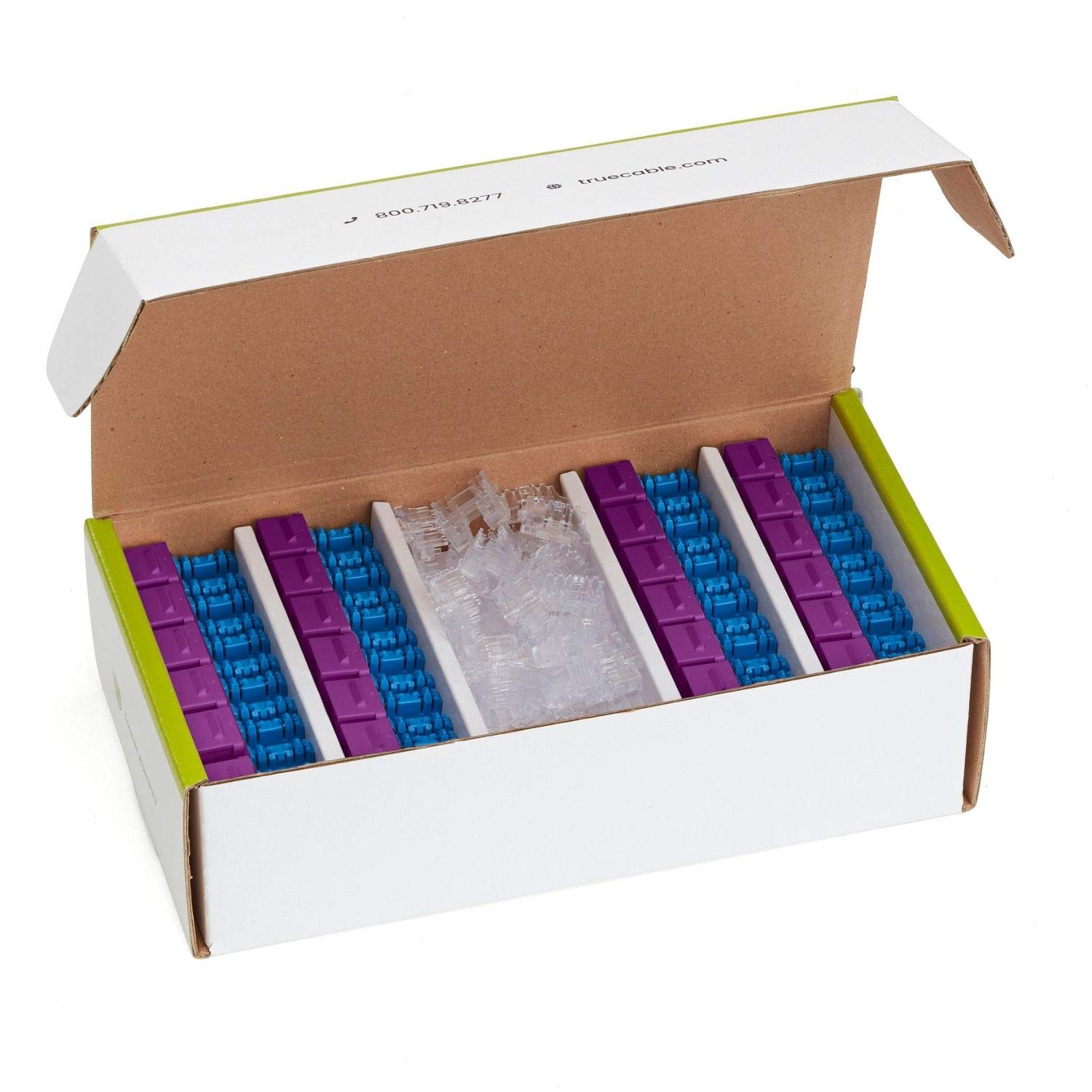

12 PIECE BOX. Each keystone includes an IDC cap along with with full instructions on how to terminate.
Overview
Brand : TRUE CABLE
Connector Type : RJ45
Cable Type : Component, Ethernet
Compatible Devices : IP Camera, VoIP Phone, Wireless Access Point, Network Device, Data Center Equipment
Special Feature : Press-Fit Technology, Impedance matching, Data Center Ready
