About This

• [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 40~50mm

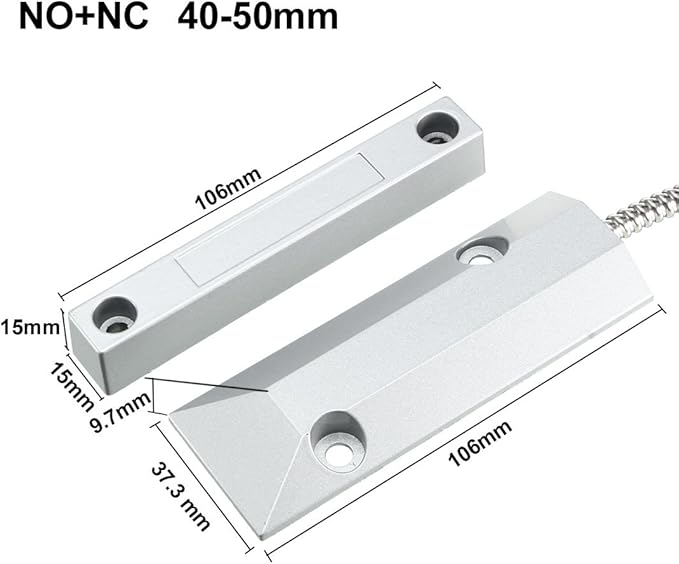

• [Dimension] - Cable Length: 48.5cm/19.1"; Total Size: 106 x 37.3 x 9.7mm, 106 x 15 x 15mm (L*W*H)

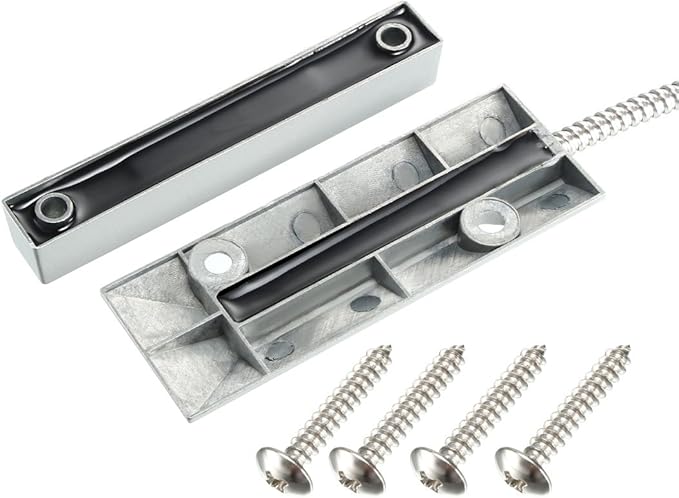

• [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance

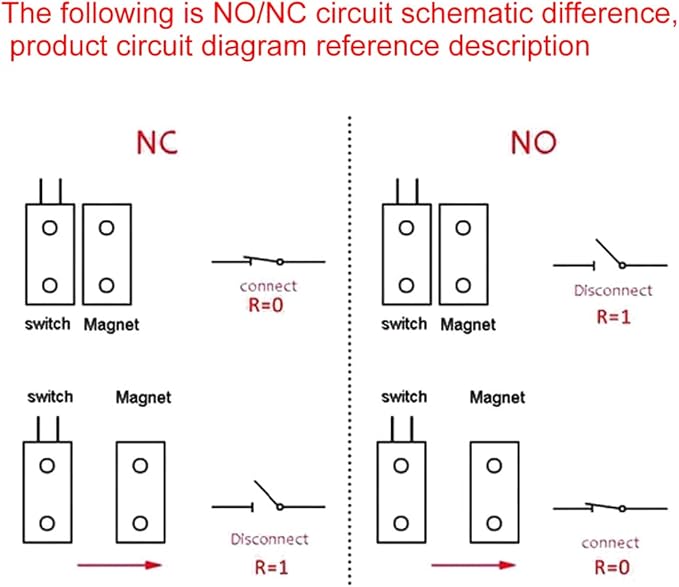

• [N.O./N.C.] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). N.O. means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, pls check carefully!

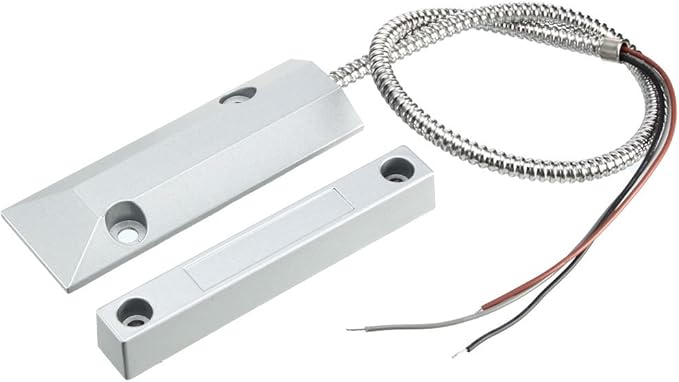

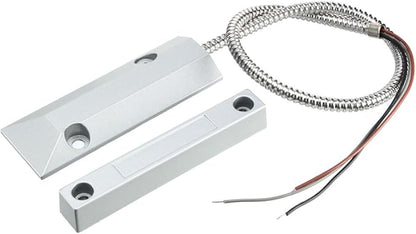

• [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.

Overview

• Operation Mode : Off
• Current Rating : 0.5 Amps
• Operating Voltage : 100 Volts
• Contact Type : N.o./N.c.
• Connector Type : Screws
• Brand : uxcell
• Terminal : Screw
• Circuit Type : N.O./N.C.
• Contact Material : Zinc Alloy
• International Protection Rating : IP54
• Switch Type Reed : Material Stainless Steel
• : Switch Type Reed
• : Material Stainless Steel
• Mounting Type Surface Mount : Specification Met Ip54
• : Mounting Type Surface Mount
• : Specification Met Ip54
