The Shielded Industrial Panel Mount is a Waterproof Ethernet LAN Cable Connector. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference.
Specifications:
Color: Black
CNBTR Material: Plastic + Metal
Connect Port: RJ45
Cable Core: 8
Pins:8P8C
Withstand Voltage(AC.V)1min: 1000V
Contact Resistance: less than 30mV
Insulation Resistance: more than 500MΩ
Durability: more than 500 mating&unmating cycles
Insulated parts: High performance engineering plastics
Hardware metal: Zinc alloy(pearl hard chromium)
Contact pin: Copper alloy(gold-plated)
Working Temperature: -40°C-105°C

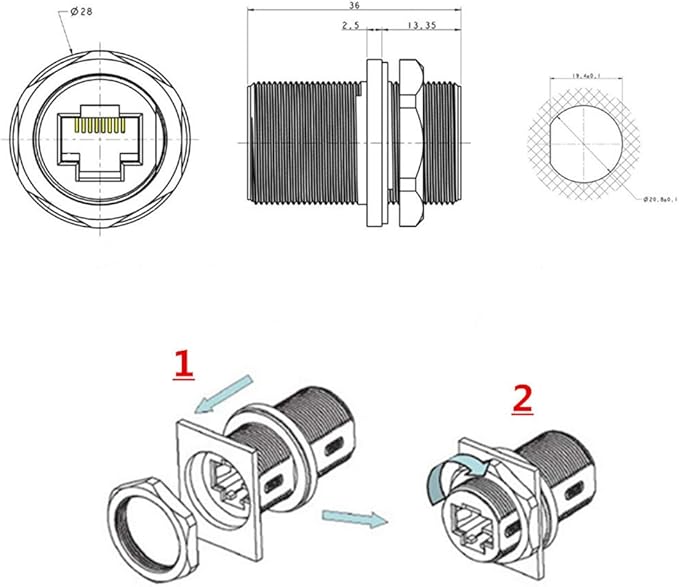

Total Length: approx. 36mm/1.42inch
Mounting panel thickness:1.5~10mm(not included)
Hole Size:20.8mm
Package Included:
1x Shiled Waterproof RJ45 Connector
