About This

• ☀MATERIAL - The switch housing is made of ABS flame retardant material and reed switch, is resistant to high temperature and deformation.

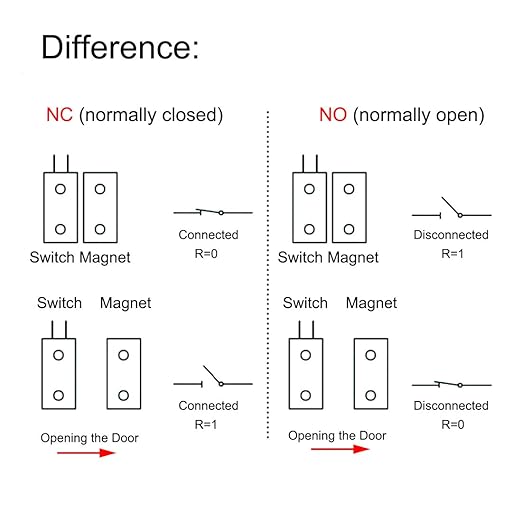

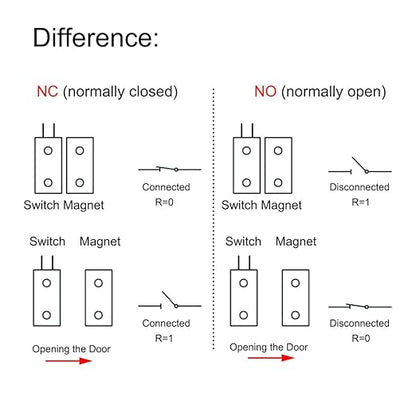

• ☀NORMALLY CLOSED(NC) - When the switch is close to the magnet, the circuit is conductive(light on); when the switch is separated from the magnet, the circuit is not conductive(light off).

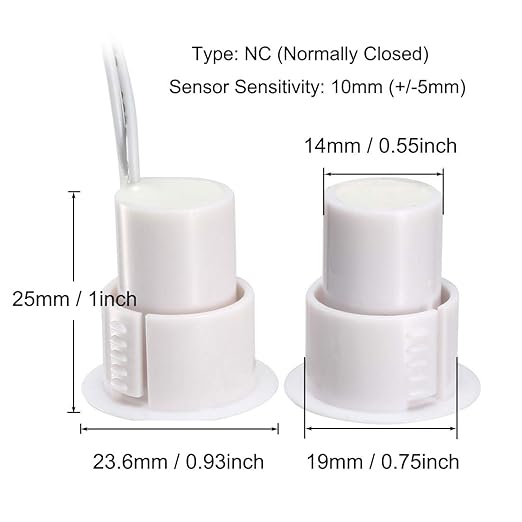

• ☀ACTUATION DISTANCE - 10mm transmitting distance. The contact has fast reflection and accurate detection.
• ☀WORKING CONDITIONS - When the magnetic door is energized, the voltage is controlled at DC 0V-24V and the supply current cannot exceed 1A. The load current is 150mA.
• ☀WIDE APPLICATIONS - Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows.

Overview

• Operation Mode : automatic
• Current Rating : 150 Milliamps
• Operating Voltage : 24 Volts
• Contact Type : Normally Closed
• Connector Type : Molex
• Brand : VictorsHome
• Terminal : Screw
• Item dimensions L x W x H : 3.15 x 1.18 x 2.76 inches
• Circuit Type : 1-way
• Mounting Type : Surface Mount
• Switch Type Temperature Switch : Material Aluminum,Wooden,Aluminum Alloy,Abs
• : Switch Type Temperature Switch
• : Material Aluminum,Wooden,Aluminum Alloy,Abs
