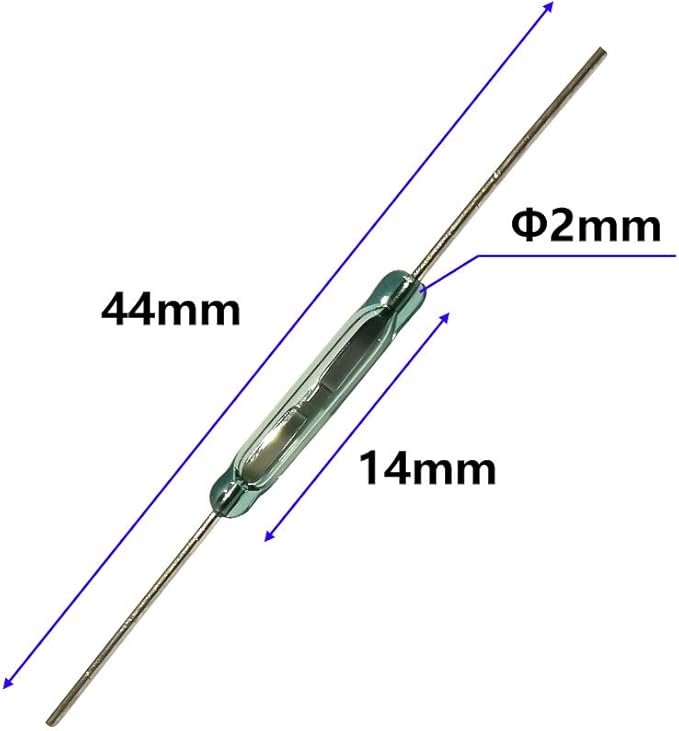

Total Length 44mm
Glass Length 14mm
Glass Diameter 2mm
Contact Form A
Working temperature: -20 degrees to 80 degrees
Maximum power 10W
Maximum switching voltage 100VDC
Maximum switching current 0.5A
Maximum load current 1.0A
Maximum contact resistance 100M
Minimum insulation resistance 1010
Action time 1.0ms
Bounce time 0.6ms
Release Time 0.4ms
Response frequency 4000Hz
Maximum operating frequency 500Hz
Sensitive Value 10-15AT
Minimum reset Min Value 4FT
Maximum contact capacitance 0.7PF
Electrical life (load) 108 (5VDC, 10mA) 105 (24VDC, 400mA)
Test line circle number / Resistance 870/5000Ω

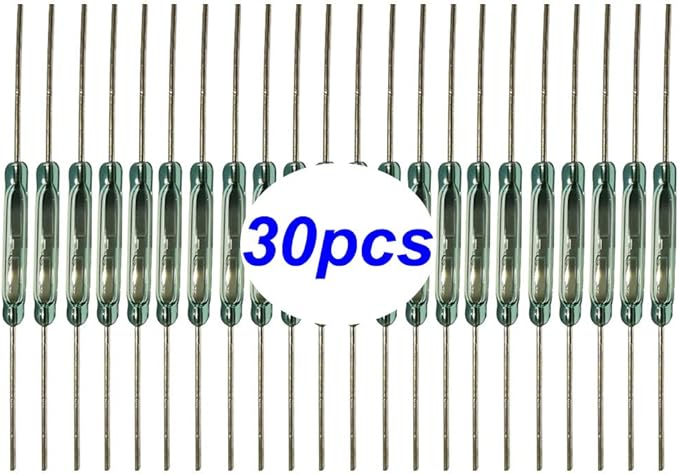

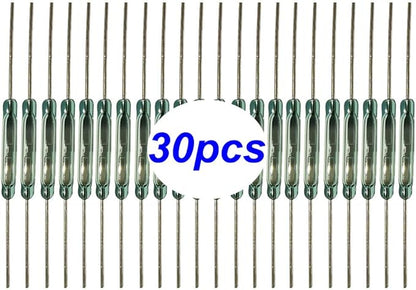

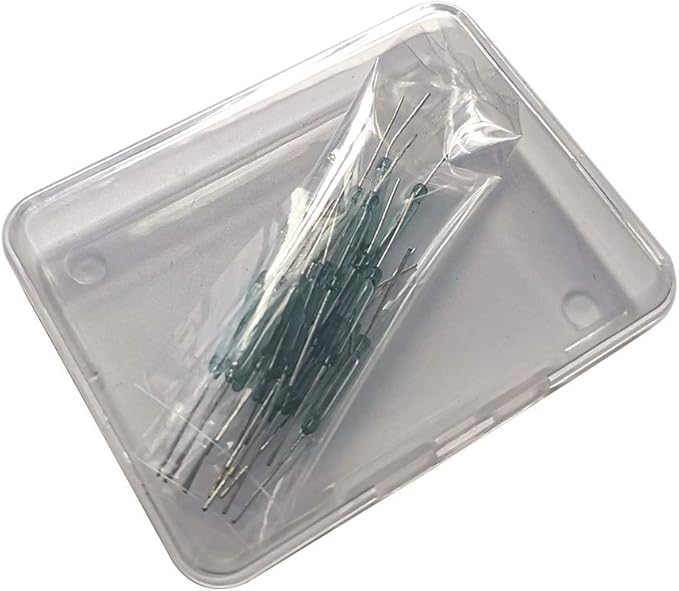

Package included:30 X Reed Switch
