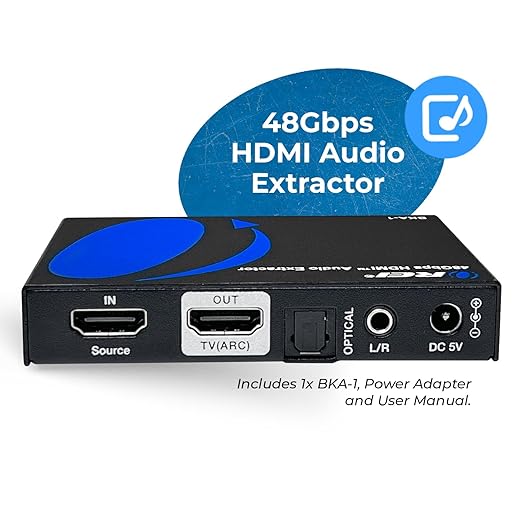

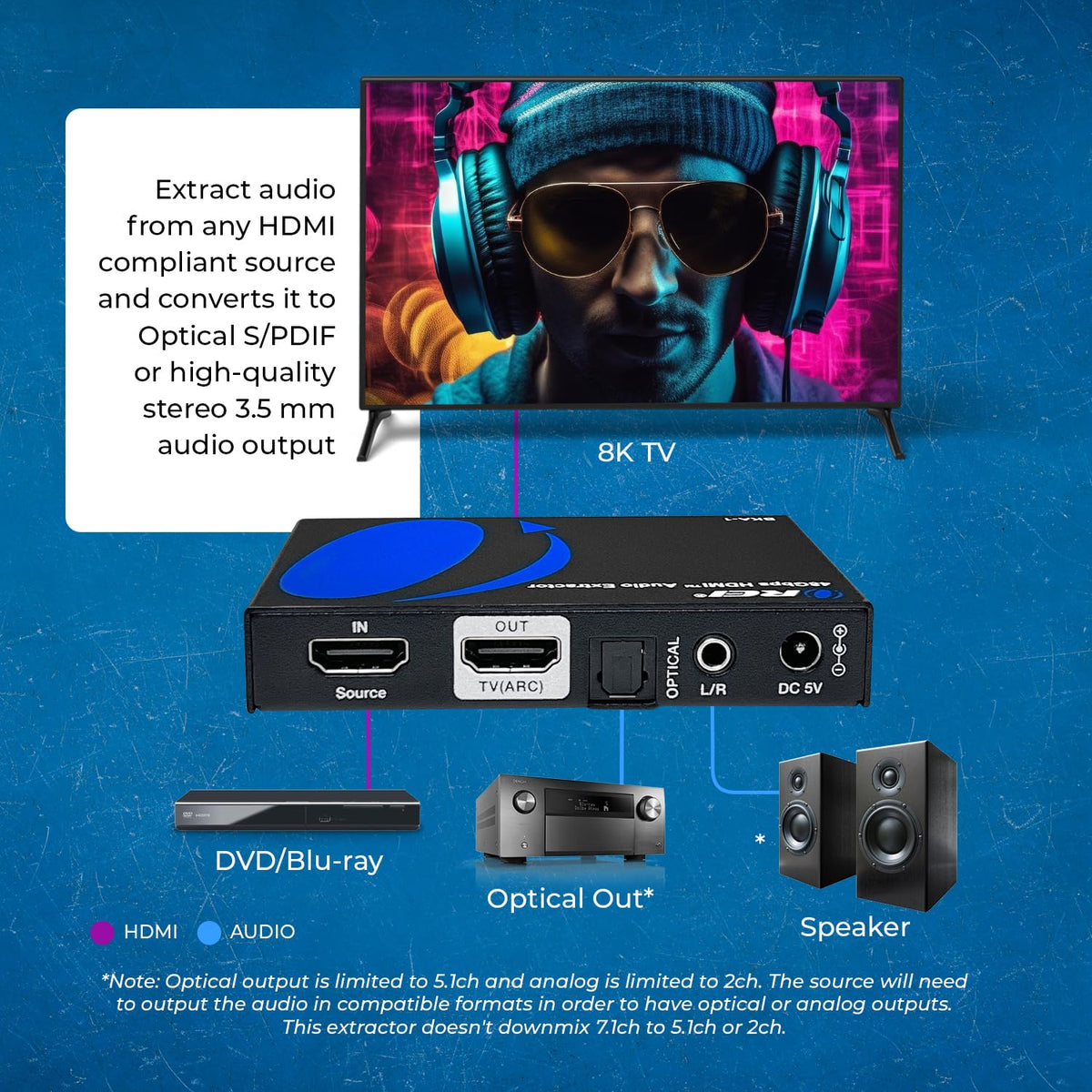

8K HDMI Audio Extractor: Designed to extract audio from any HDMI-compliant source and convert it to Optical (S/PDIF) or high-quality stereo 3.5mm audio output. Input: 1× HDMI | Output: 1× HDMI ARC, 1× L/R Audio Out, 1× Optical Out (S/PDIF).
DOES NOT SUPPORT eARC: Supports video pass-through up to 8K @ 50/60Hz, 4K @ 120Hz (YUV 4:4:4), 4K @ 30Hz, 1080P @ 120Hz, and 1080P 3D @ 60Hz. HDMI 2.1 protocols supported — ALLM, QMS, QFT, SBTM, HLG Pass-through, Dolby Vision, HDR, HDR+. Supported Audio: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X.

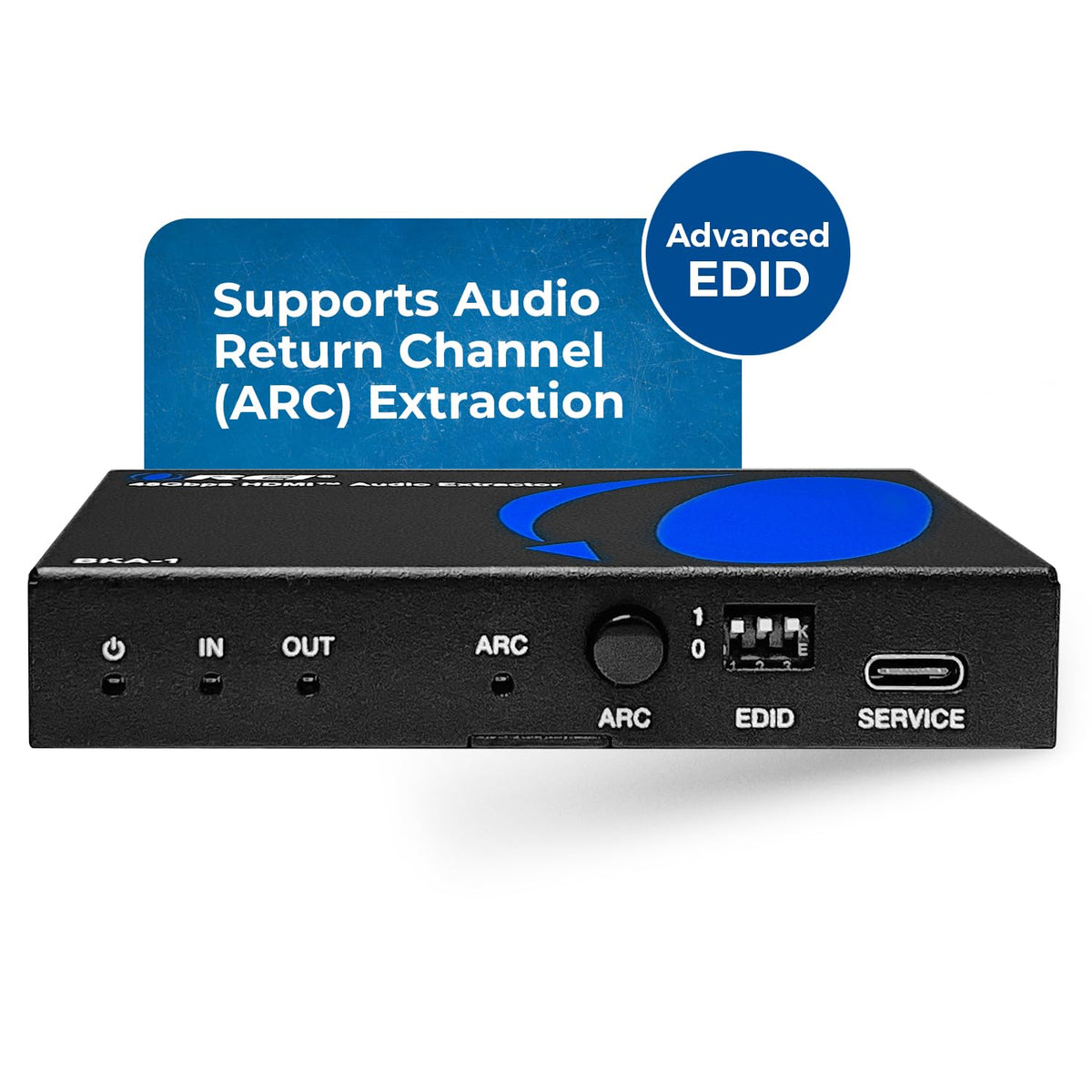

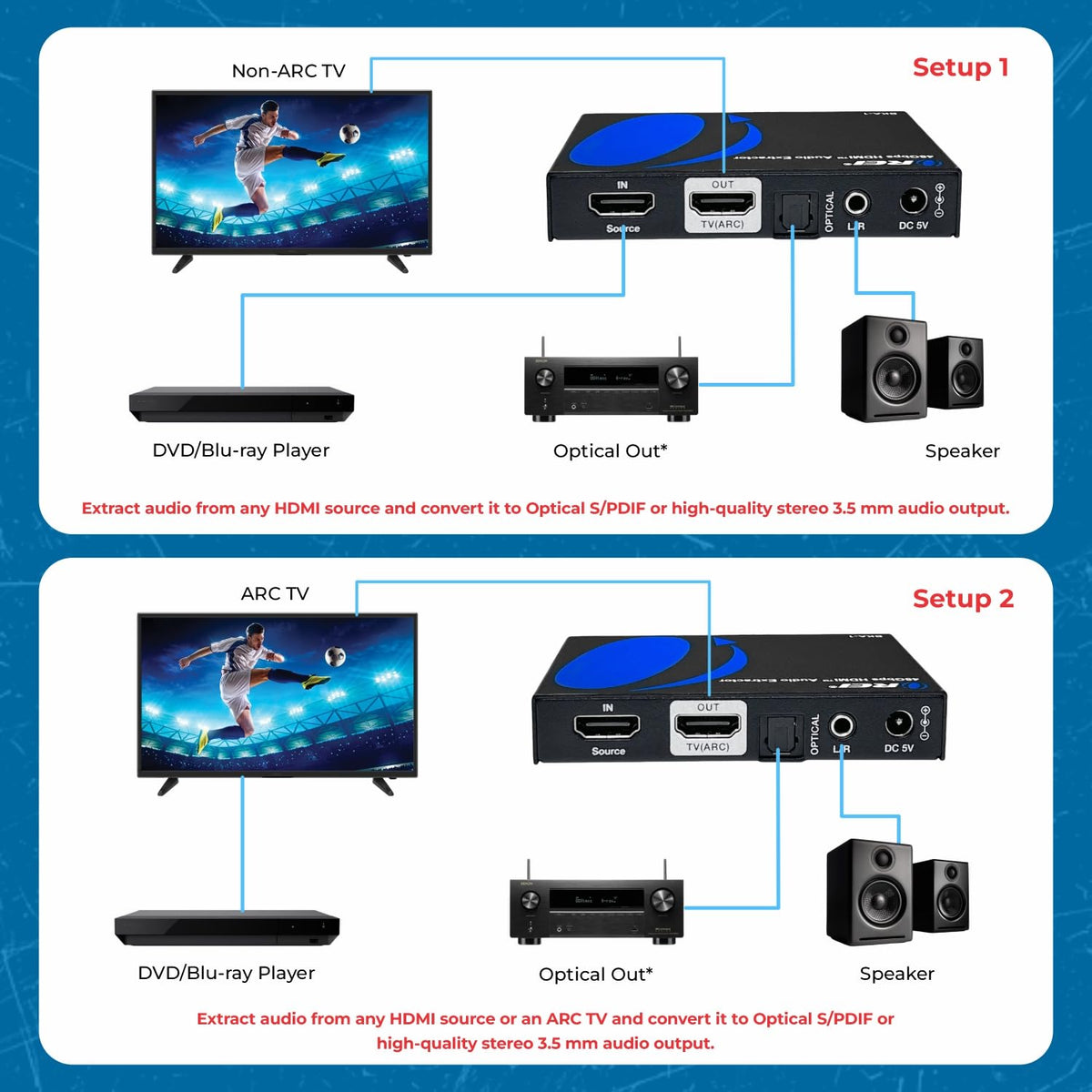

High Bandwidth & ARC Support: Supports 48 Gbps FRL and 18 Gbps TMDS video bandwidth. Features HDMI High Bit Rate (HBR) audio pass-through and CEC bypass. HDMI 2.1 | HDCP 2.3 | DVI Compliant | Supports ARC. NOTE: Volume cannot be controlled using the TV’s remote. The device comes with a dual voltage supply using a US plug, and an adapter/converter is provided for international use.

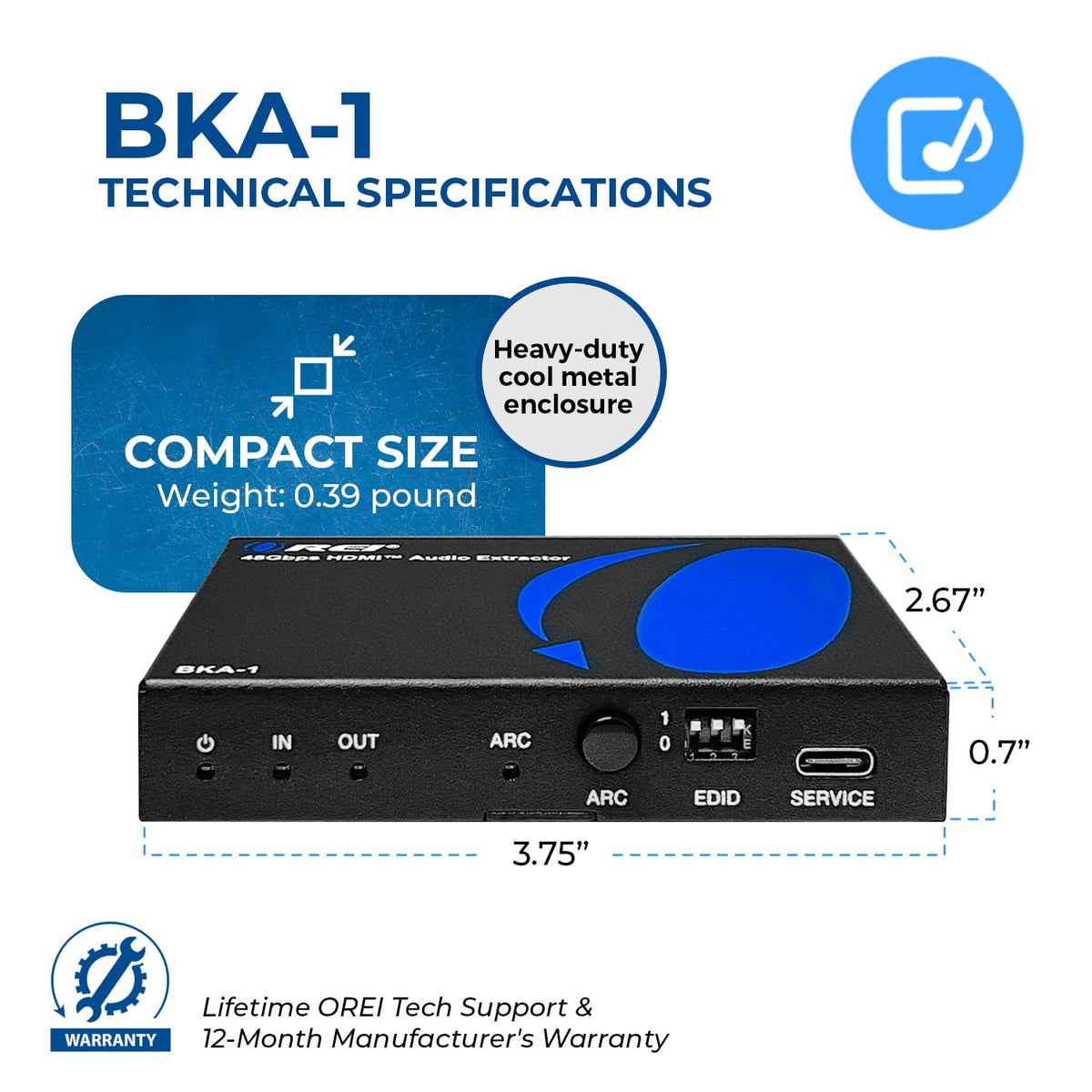

HDMI 2.1 Cable Required: HDMI Input supports Computer, Laptop, PS5, PS4, PS3, Xbox, Blu-ray DVD Player, and STB devices. HDMI Video Output supports Projectors, HDTVs, Monitors, and Screens. Heavy-duty metal enclosure ensures efficient heat dissipation and durability; compact size allows easy plug-and-play installation.
Package Includes: 100-240V 50/60 Hz auto-switching power supply (worldwide use), HDA-913 Audio Extractor, User Manual, Lifetime OREI Tech Support, and 12-Month Manufacturer’s Warranty.
