About This

• [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 40mm

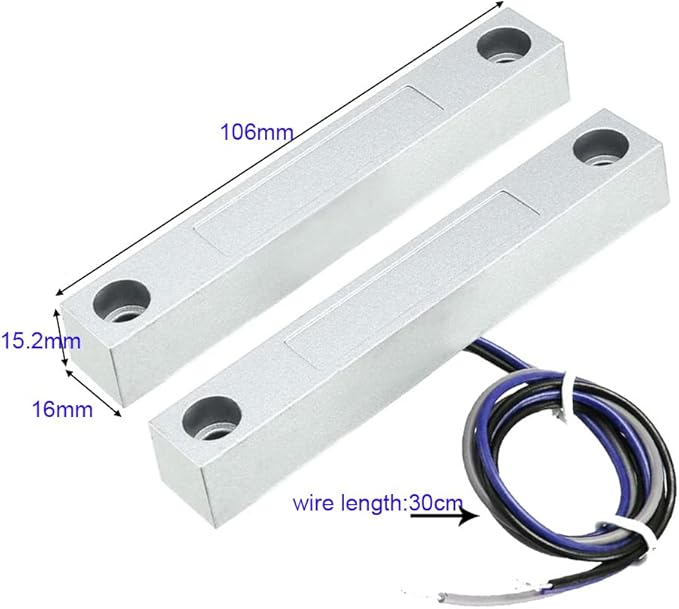

• [Dimension] - Cable Length: 30cm/11.8"; Total Size: 104 x 15.2 x 14.8mm / 4.09 x 0.6 x 0.58 inch (L*W*H)
• [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance

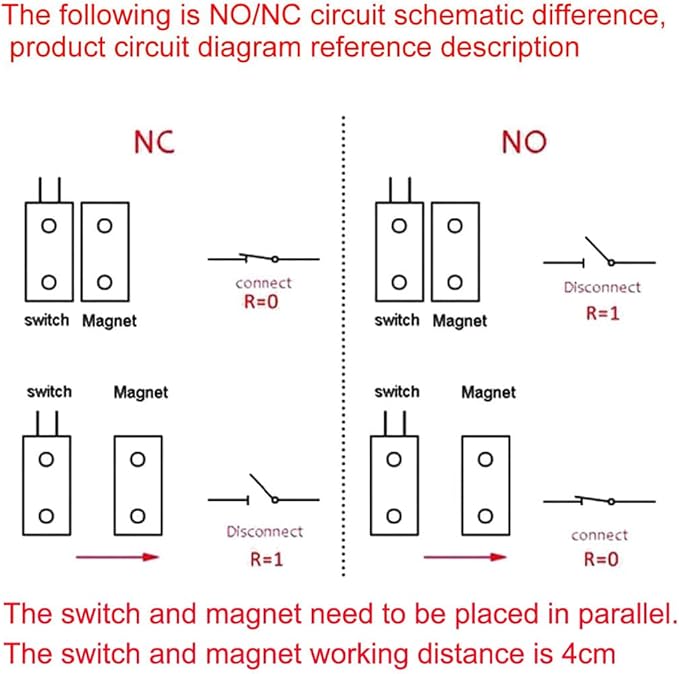

• [N.O./N.C.] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). N.O. means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, pls check carefully!
• [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.

Overview

• Operation Mode : automatic
• Current Rating : 0.5 Amps
• Operating Voltage : 100 Volts
• Contact Type : Normally Open, Normally Closed
• Connector Type : Screw
• Brand : Gebildet
• Terminal : Through Hole
• Circuit Type : 1-way
• Contact Material : Metal
• Color : Silver-E1282T
• Switch Type Reed Switch : Mounting Type Surface Mount
• : Switch Type Reed Switch
• : Mounting Type Surface Mount
