JRready 50Sets D-436 Series Heat Shrink Butt Splice Connector 20-16 AWG(D-436-37 M81824/1-2 Equivalent) IP68 Waterproof Blue Environmental Butt Splice with PVDF/PE Tubes ST6385-16-50 Wire Connectors

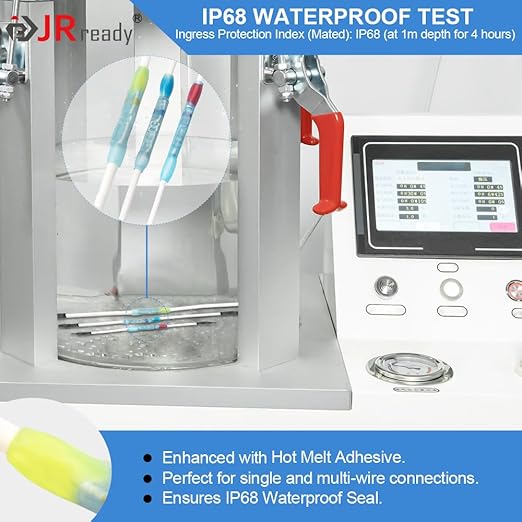

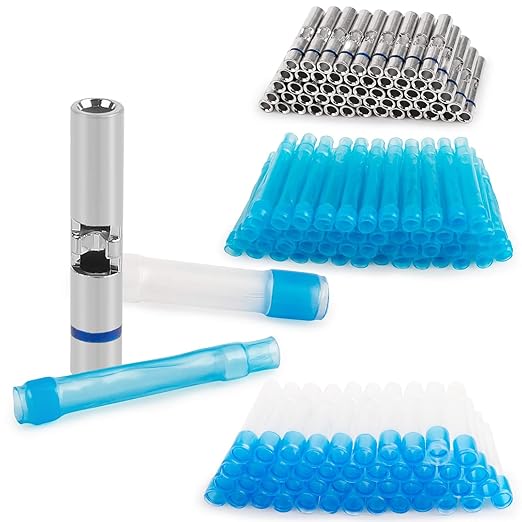

• [D-436-37 Butt Splice Connectors] The JRready M81824/1 series heat shrink butt splice connector kit is compact, lightweight, and rated IP68 for harsh environments. The environmental splice kit includes 50PCS blue copper butt splice connectors, 50PCS PVDF insulation sleeves, and 50PCS additional PE sleeves. Designed for reliable performance in automotive, marine, and aviation maintenance applications.

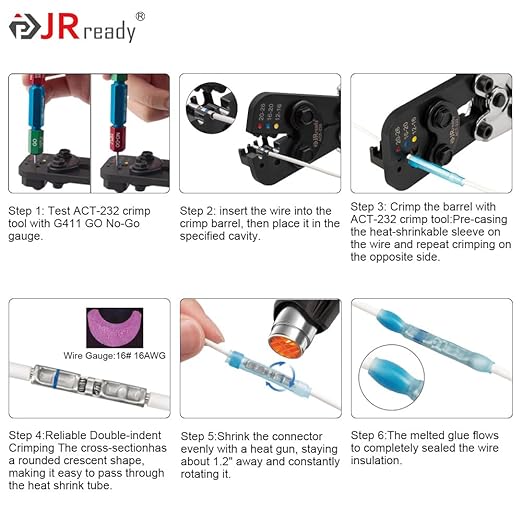

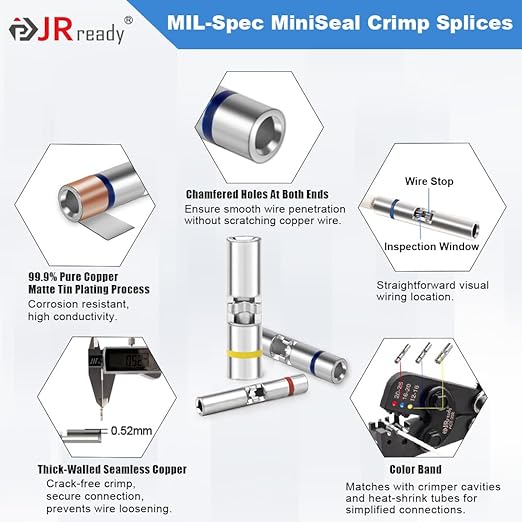

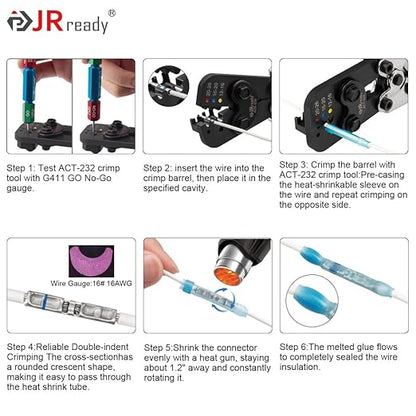

• [Copper Tube Crimp Splice Advantages] Utilizing 99.9% pure copper with a matte tin plating, the butt splice connectors offer outstanding corrosion resistance and conductivity. Chamfered holes at both ends ensure smooth wire penetration without scratching. The Inspection Window allows for straightforward visual location of wiring. The Color Bands correspond with crimp tool cavities and heat-shrink tubes, ensuring an easy and accurate installation.

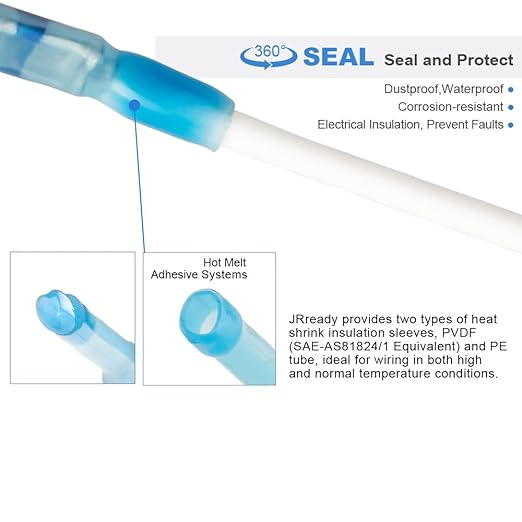

• [3:1 Premium Heat Shrink Tube] JRready offers two types of heat shrink tubes, PVDF and PE, specifically designed for use with their MIL-Spec MiniSeal Crimp Splices. PVDF tubes, operating from -67°F to 302°F (-55°C to 150°C) and suitable for wires above 275°F (135°C), boast IP68 and VW-1 ratings. PE tubes, ideal from -67°F to 257°F (-55°C to 125°C) for wires above 176°F (80°C), ensure a reliable seal. Both types feature color bands and hot melt adhesive for seamless sealing.
• [Separated Copper Barrel and Heat Shrink Sleeve Design] MiniSeal crimp splices feature a design with a plated copper crimp barrel and a separate sealing sleeve, effectively preventing insulation damage during the crimping process. This design is ideal for outdoor applications, offering reliable protection in various environmental conditions.

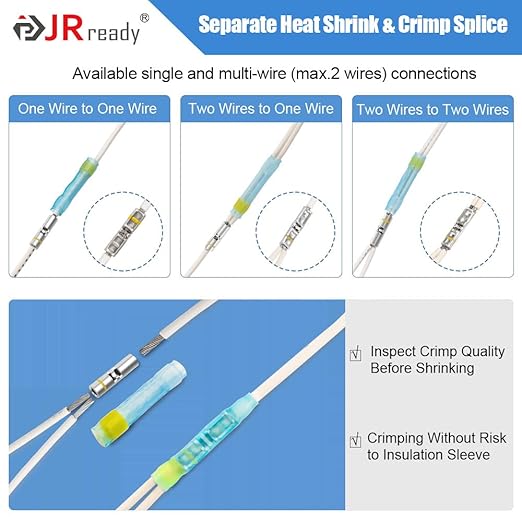

• [JRready Wire Butt Splice Connectors] JRready's Butt (In-line) splice connectors offer versatile in-line splicing solutions. These connectors are suitable for both single and multi-wire(max. 2 wire) connections, ensuring reliable connectivity for various wiring projects.

Product Details
