About This

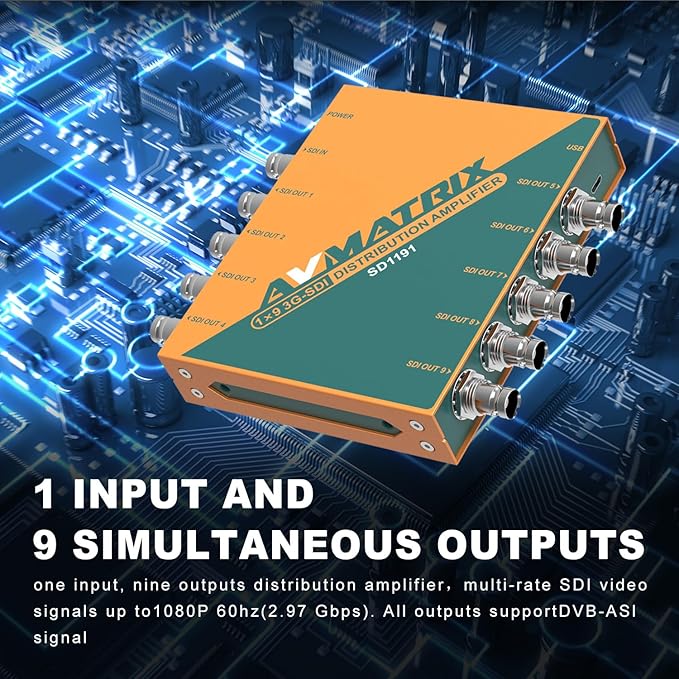

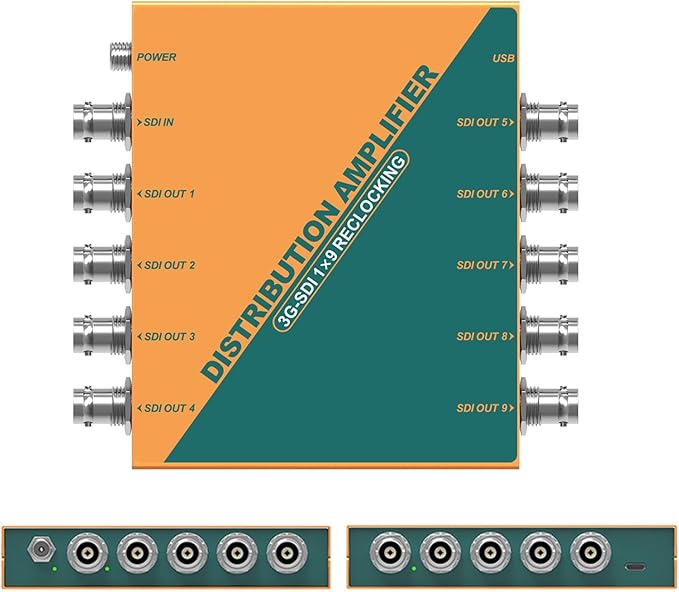

• 【9 Ouptput, 1 Inputs, Auto Detechable】SD1191 is a compact, one input, nine output distributionamplifier for SDl and multi-rate SDl video signals up to1080P 60hz(2.97 Gbps). input support Auto detech HD/ SD/ AG-SDI Signal, Outputs support DVB-ASl signal

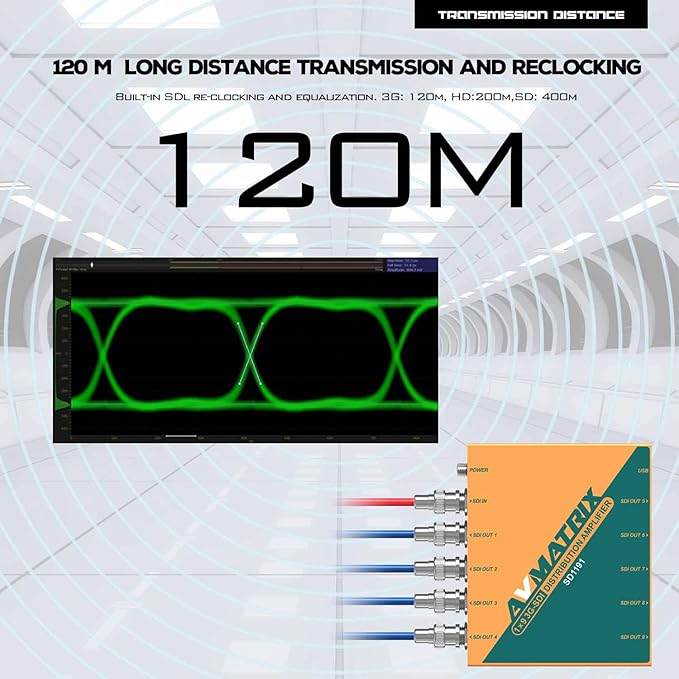

• 【120m SDI Signal Reclocking】 All outputs are equipped with signal re-clocking function. SD1191 include built-in SDl re-clocking andequalization.They will regenerate the SDl videoinput, reduce SDl jitter and improve SDl eyepattern before the signal gets to the converter'sprocessingThis allows longer cable lengths (3G: 120m, HD200m,SD: 400m) Ensures perfect signal transmission over long distances,it's a ideal device for long distance setup.
• 【Detachable Bracket for Wall Mounting】 With bracket for wall mounting, user can mount the amplifier to anythere they need. Widely used in broadcast and video production facilities, command and control centres, medical imaging facilities, etc.
• 【What's inclued】SD1191 (1x9 3G-SDI Reclocking Distribution Amplifier)/ 12V Special Power Adapters x1
• 【Long-term Technical Support】3-Years guarantee and lifetime Technical support. Our professional engineer are here for you anytime.

Overview

• Compatible Devices : Amplifier
• Specific Uses For Product : Broadcasting
• Connector Type : Component
• Color : Green
• Item dimensions L x W x H : 4.94 x 4.09 x 0.96 inches
