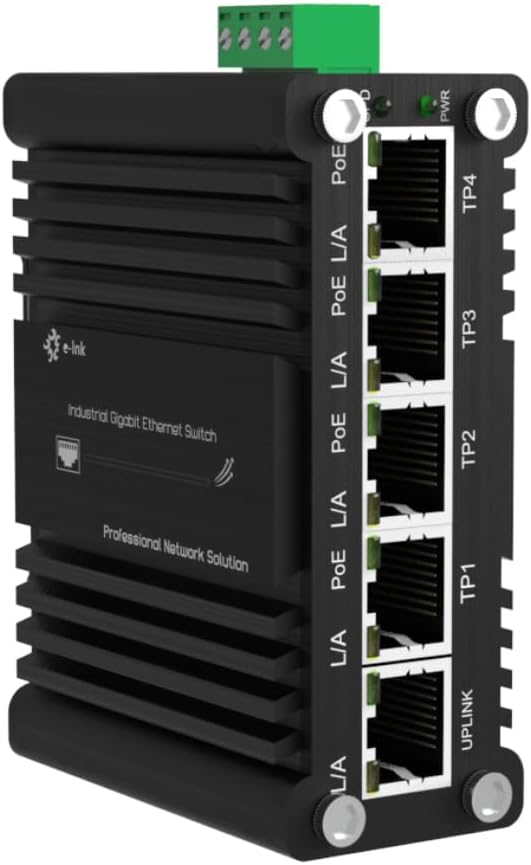

Throncom Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch, Din Rail Unmanaged 10/100/1000Mbps Network Switch 30W/Port Max 120W 12-48V DC Thick Shell

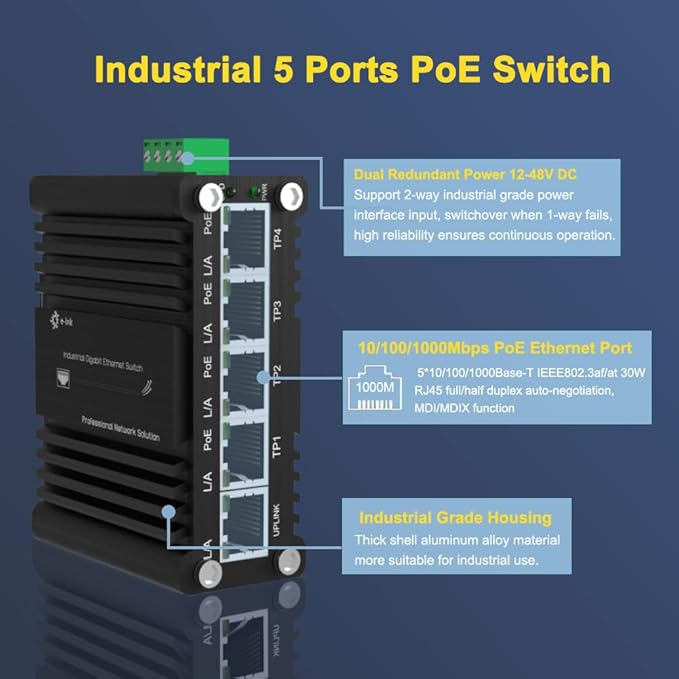

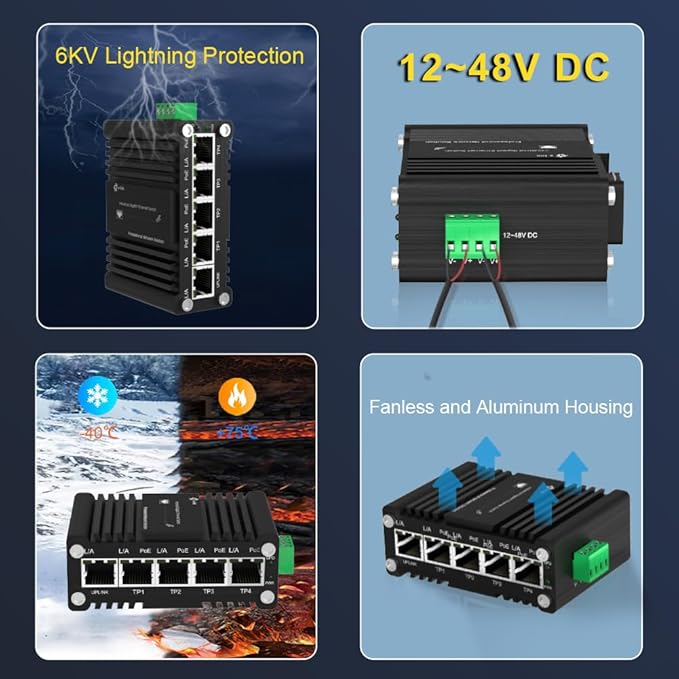

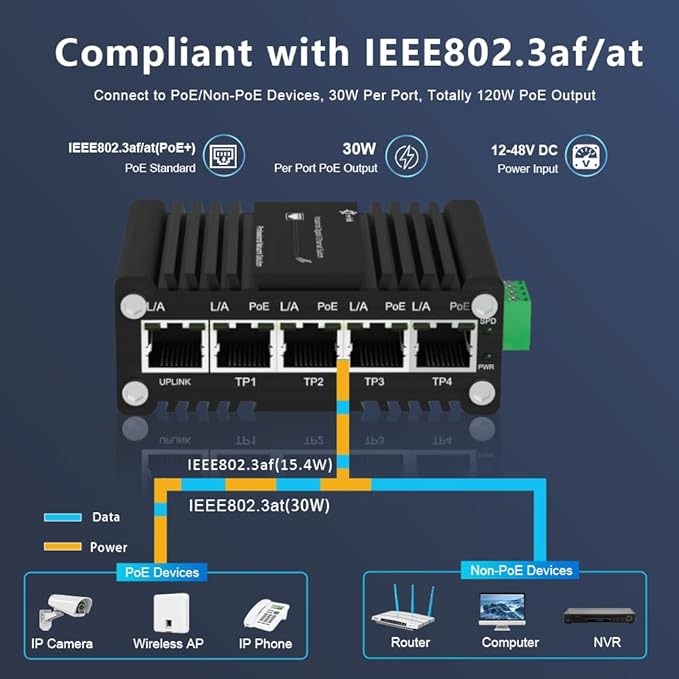

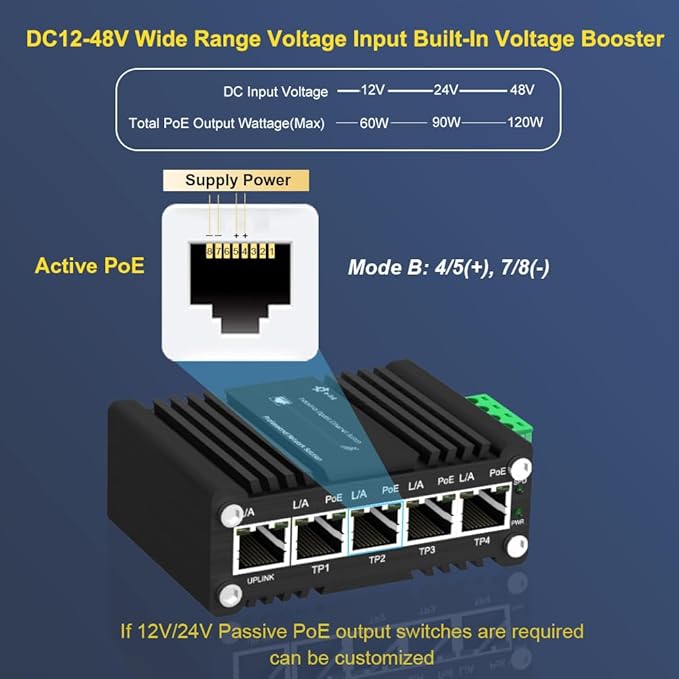

Overview: LNK-IMC005GP Series is a Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections. Features: 1. 5 x 10/100/1000BASE-T ports 2. 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4) 3. 12~48VDC wide range power input 4. Supports 802.3x Flow control 5. Supports DIN-Rail and Wall-mount installation 6. Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) 7. Industry standard design, dustproof and close design IP40, rugged high-strength metal case 8. -40°C to 80°C (-40°F to 176°F) operating temperature Specifications: Packet Buffer: 1Mbits Packet Length: 10Kbytes MAC Address Table: 8K Switch Fabric: 10Gbps/non-blocking Connector: 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports, 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) Standard: IEEE802.3af/at Port: RJ45 Power Pin Assignment 4/5(+), 7/8(-) PoE Budget: Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) Operating Temperature: -40°C to 80°C (-40°F to 176°F) Relative Humidity: 5% to 95% non-condensing MTBF > 200,000 hrs Input Power: 12~48VDC (Terminal Block) Power Consumption: <125W (Non-PoE<6W) PoE Max 30W per port Dimensions (WxDxH): 95 x 70x 29mm Weight: 0.25Kg Casing: Aluminum Case Mounting Options: DIN-Rail / Wall-mount Packages: 1* Ethernet Switch 1* 4-pin Terminal Block 1* Ethernet Switch User’s Manual

Product Details

Manufacturer	Throncom
Model	5 ports PoE Switch
Color	Black
Quantity	1
Weight	508 g
