Warm Tips:

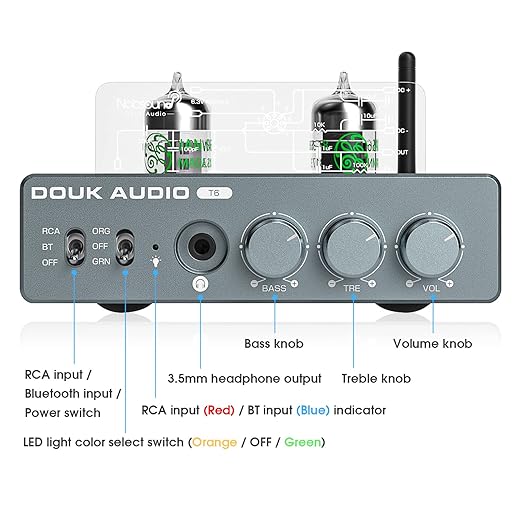

1. When the scale line on the treble and bass knob points to the direction of 12 o'clock, it means the gain is 0dB.
2. The 3.5mm headphone jack output is prioritized; banana speakers and 3.5mm AUX outputs will automatically disconnect when headphones are connected.

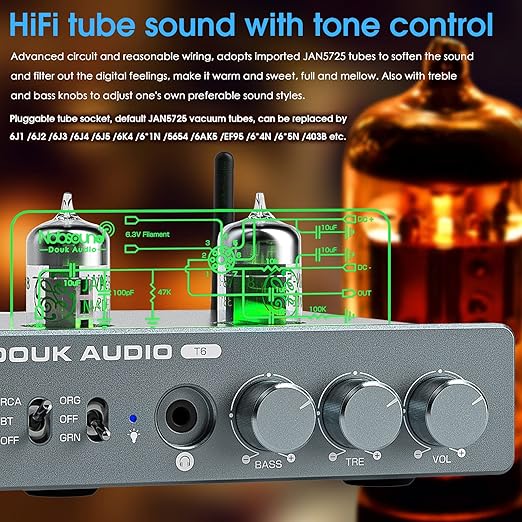

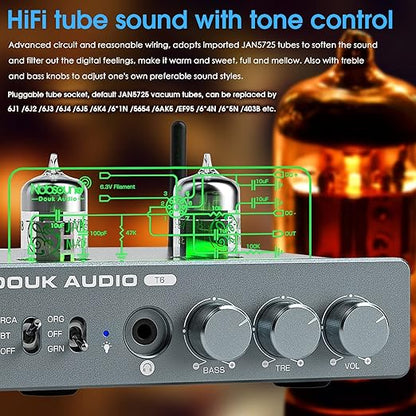

3. Pluggable tube socket with default JAN5725 vacuum tubes, which can be replaced by 6J1 / 6J2 / 6J3 / 6J4 / 6J5 / 6K4 / 6*1N / 5654 / 6AK5 / EF95 / 6*4N / 6*5N / 403B, etc.
Parameters:

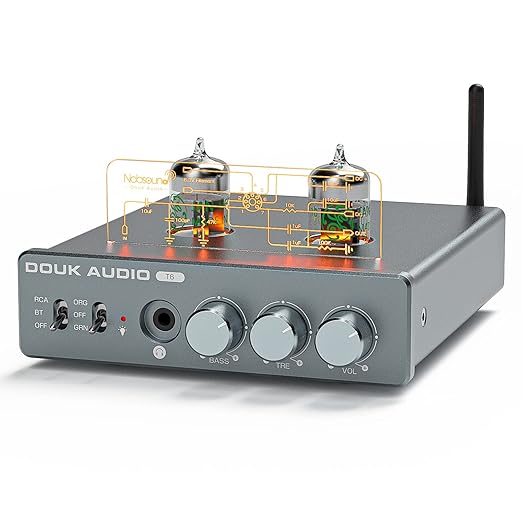

Model: Douk Audio T6

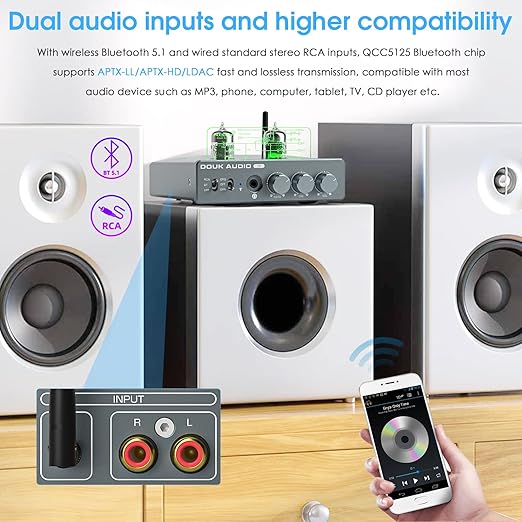

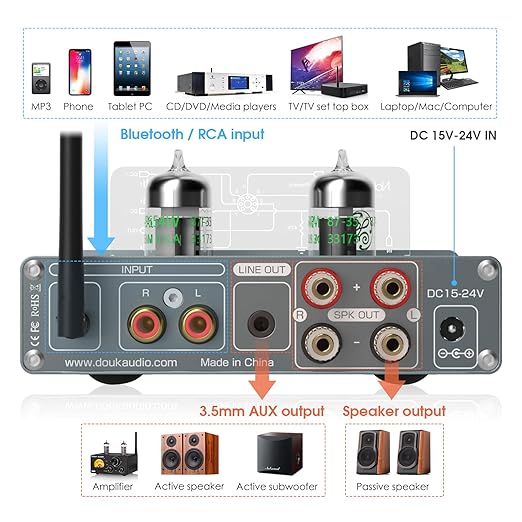

Audio input: Bluetooth 5.1 / stereo L/R RCA

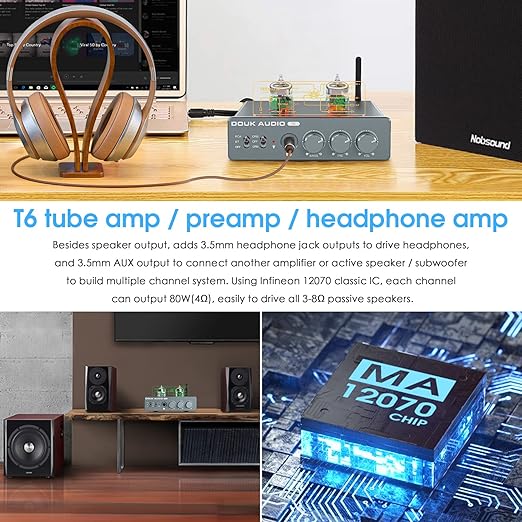

Audio output: banana speaker jacks / 3.5mm headphone jack / 3.5mm AUX
Bluetooth chip: QCC5125 (support APTX / APTX-LL / APTX-HD / LDAC)
Amp IC: Infineon 12070
Sampling rate Bluetooth supported: 24Bit/96KHz
Max output power: 80W+80W (4Ω)
Matched speaker impedance: 4-8Ω
Maximum output power of earphone: 130mW×2 (32Ω)
Matched headphone impedance: 16-300Ω
Treble / bass adjustment range: ±6dB
Frequency range: 20Hz-20kHz (±3dB)
Input sensitivity: 0.775V
SNR: ≥96dB
THD: 0.1%

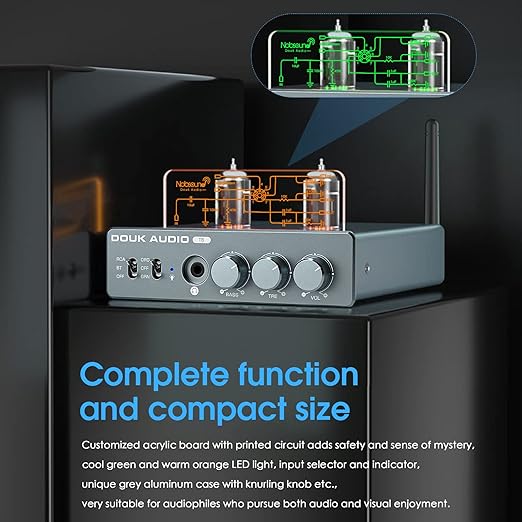

Decorative LED color: green / orange / turn off
Working voltage: DC 15-24V
Dimensions (W*D*H): 132*142*35mm / 5.20*5.59*1.38in
Package Dimensions (W*D*H): 310*240*70mm / 12.20*9.45*2.76in
Net weight: 566g / 1.25lb
Package weight: 1.2kg / 2.65lb

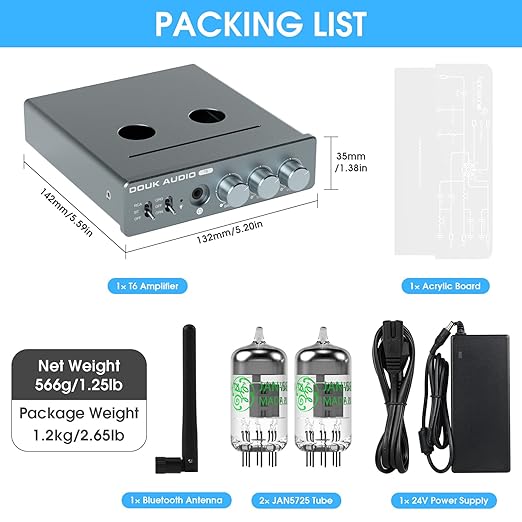

Packing List:
1* T6 Amplifier
2* JAN5725 Tube
1* 24V Power Supply
1* Bluetooth Antenna
1* Acrylic Board
1* User Manual
