Managed 8-Port 2.5G Switch with 2-Port 10G SFP+, Industrial IEEE 802.3af/at 30W PoE Ethernet Switch, 48~57VDC Power Input, Plug & Play, Support QoS, Vlan, IGMP

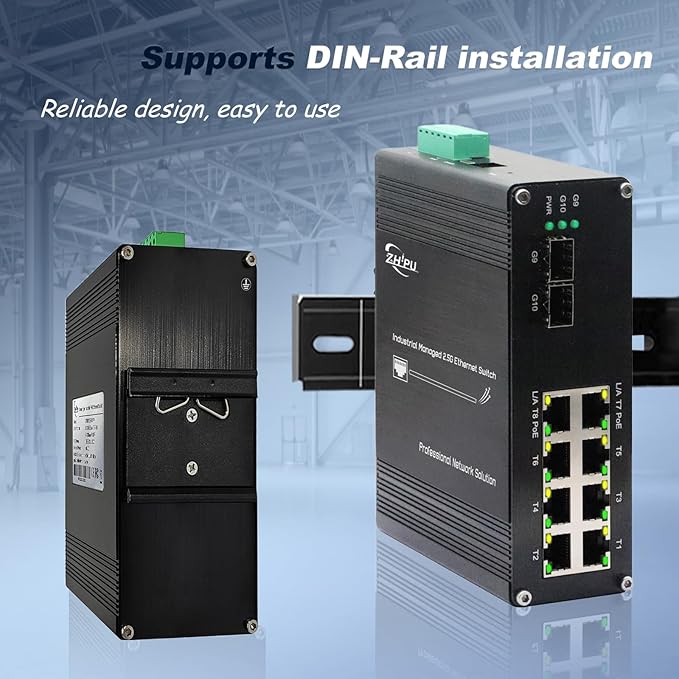

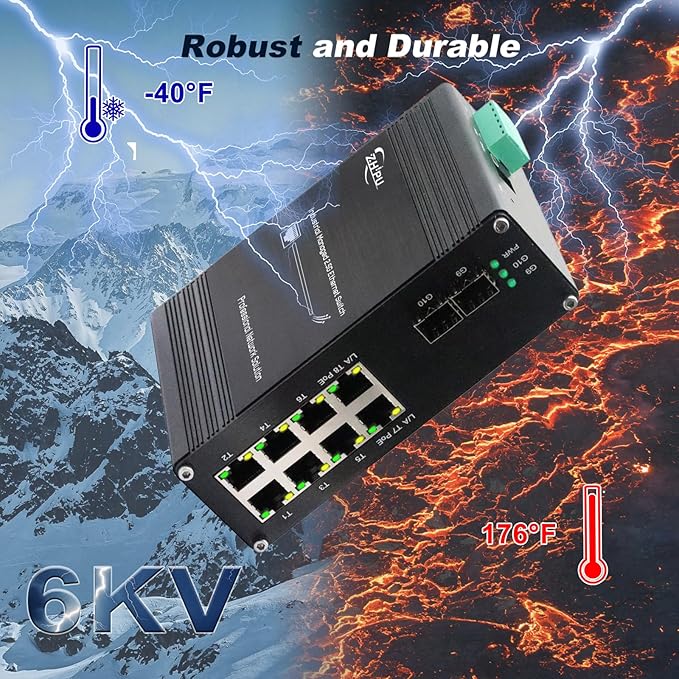

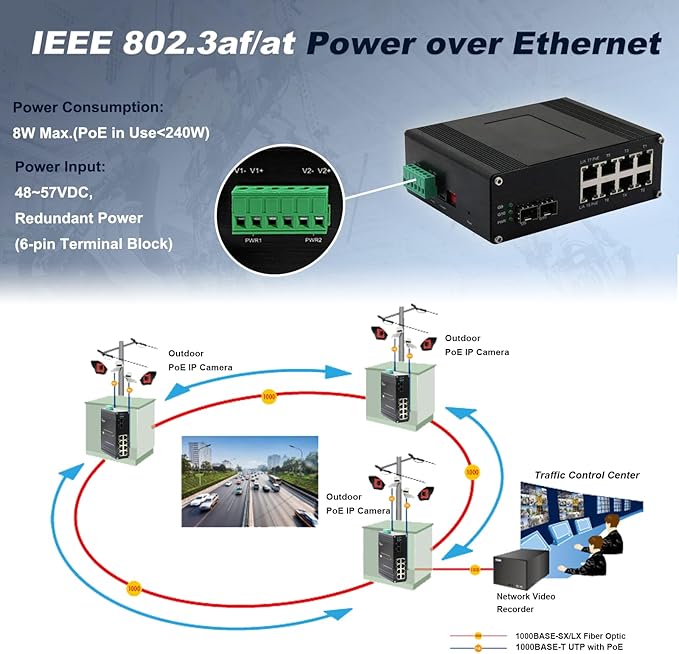

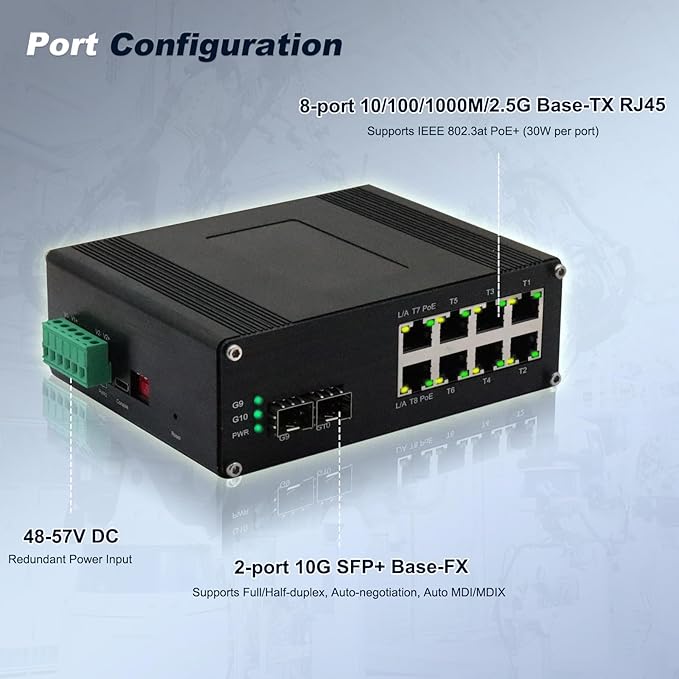

Overview: It is the managed 8-port 10/100/1000M/2.5G Base-T 802.3at PoE + 2-port 10G Base-X SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000M/2.5G Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 10G Base-X SFP+ port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations. Features: 1. Support 8x10/100/1000M/2.5G Base-T + 2x10G Base-X SFP+ 2. 10/100/1000M/2.5Gbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX 3. IEEE802.3af/at compliant 4. DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network 5. Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all 6. IEEE 802.3az Energy Efficient Ethernet (EEE) 7. 48-57VDC Redundant Power Input 8. Industry standard design, dust-proof and close design IP40 Aluminum Case 9. Supports DIN-Rail installation 10. Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature Specification: 1. Connector: 8 x RJ45 (10/100/1000M/2.5G Base-TX) 2. Optical Port: 2 x 10G SFP+ 3. Packet Buffer: 12M bits 4. Packet Length: 9K bytes 5. MAC Address Table: 8K 6. Processing Type: Store-and-Forward 7. Backplane bandwidth: 110Gbps 8. Forward & Filtering Rate: 14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps) 9. Input Power: 48~57VDC, 6-pin terminal block 10. PoE Standard: IEEE802.3af/at 11. PoE Budget: Up to 240-watt PoE budget 12. Power Consumption: 8W Max.(PoE in Use<240W) 13. Power PIN Assignment: 4/5(+), 7/8(-) 14. Certification: CE, FCC, RoHS 15. Mounting Options: DIN-Rail 16. Casing: Aluminum Case 17. Operating Temperature: -40°C to 80°C (-40°F to 176°F) 18. Storage Temperature: -40°C to 85°C (-40°F to 185°F) 19. Dimensions (WxDxH): 150 x 115 x 50 mm 20. Weight: 0.6kg Packages: 1* Managed 8-port 2.5G PoE RJ45 + 2-port 10G SFP Ethernet Switch 1* Terminal block 1* User Manual

Product Details

Manufacturer	Xinyuanhuitong
Model	Managed 8PoE+2SFP -2.5G
Color	Black
Quantity	1
Weight	700 g
