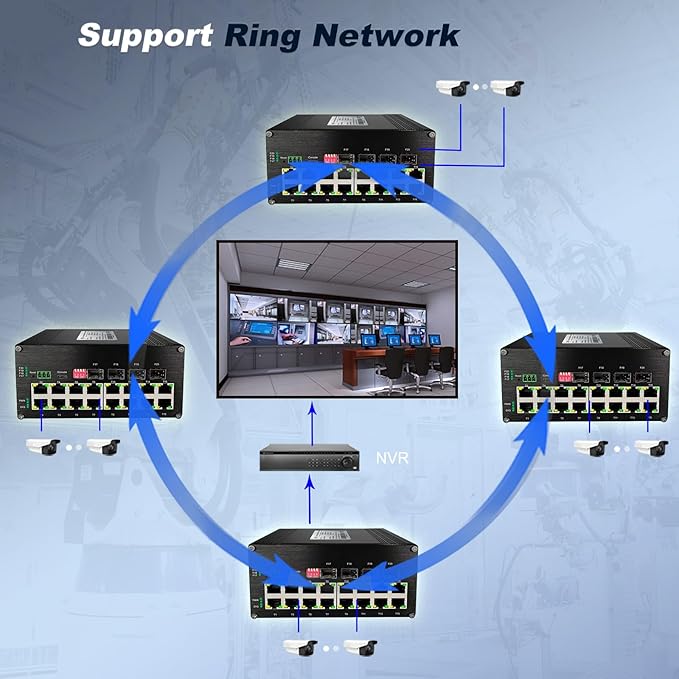

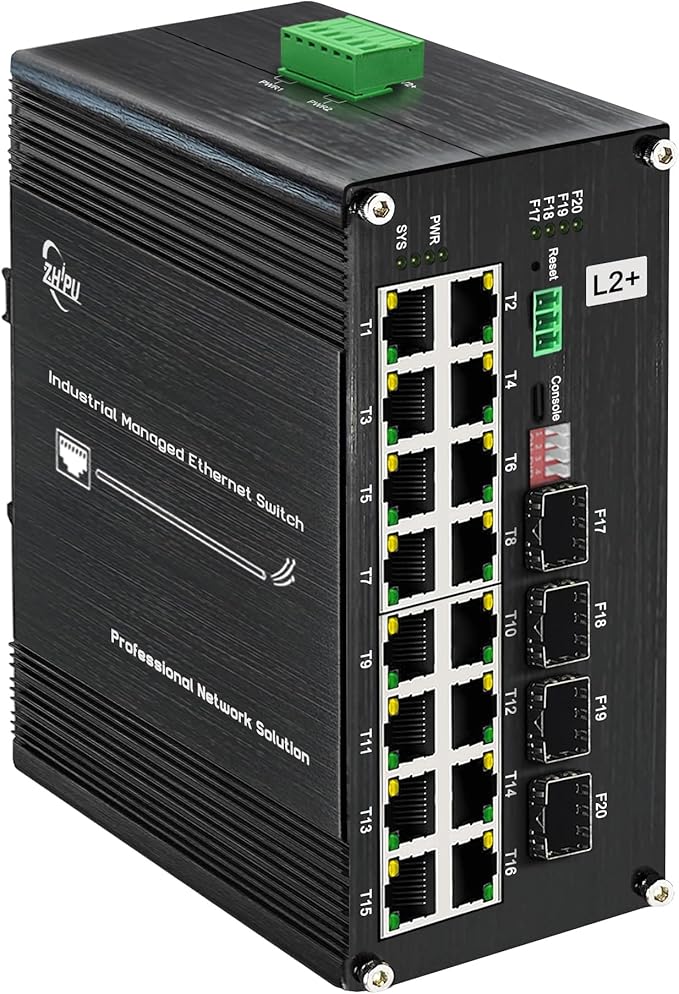

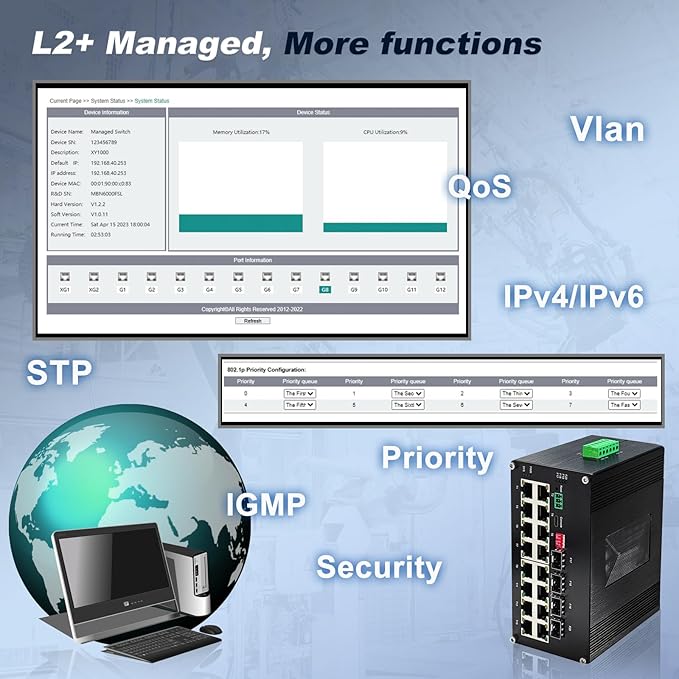

16-Port Gigabit Network Switch with 4 SFP Slot, L2+ Managed PoE Ethernet Switch, Support IEEE802.3af/at, Ring Network, VLAN, STP/RSTP, Plug and Play, Din Rail Installation

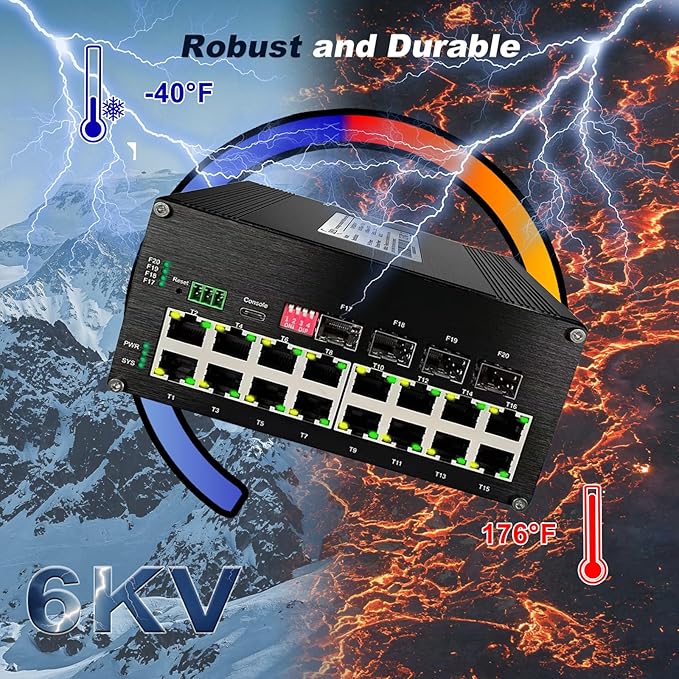

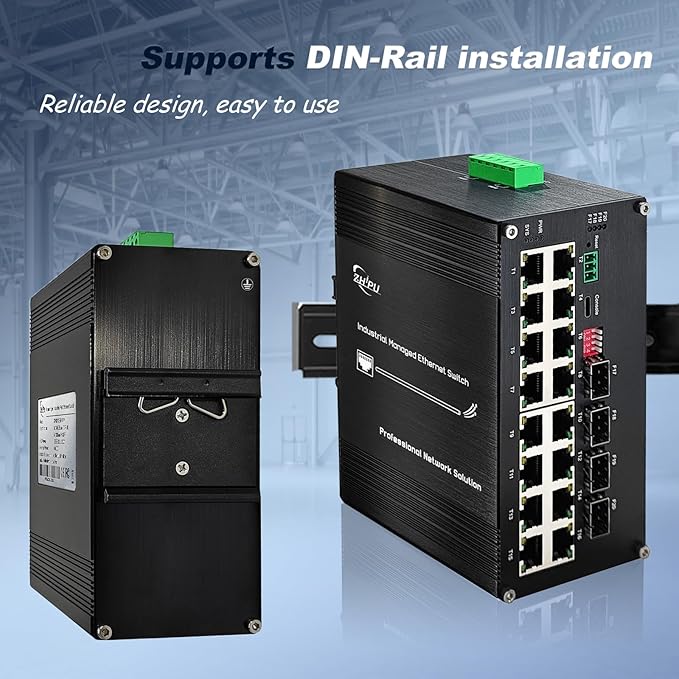

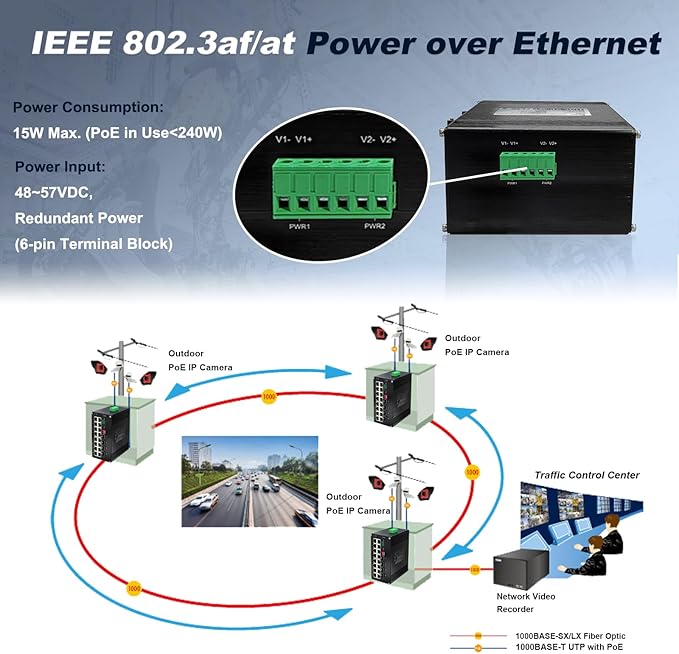

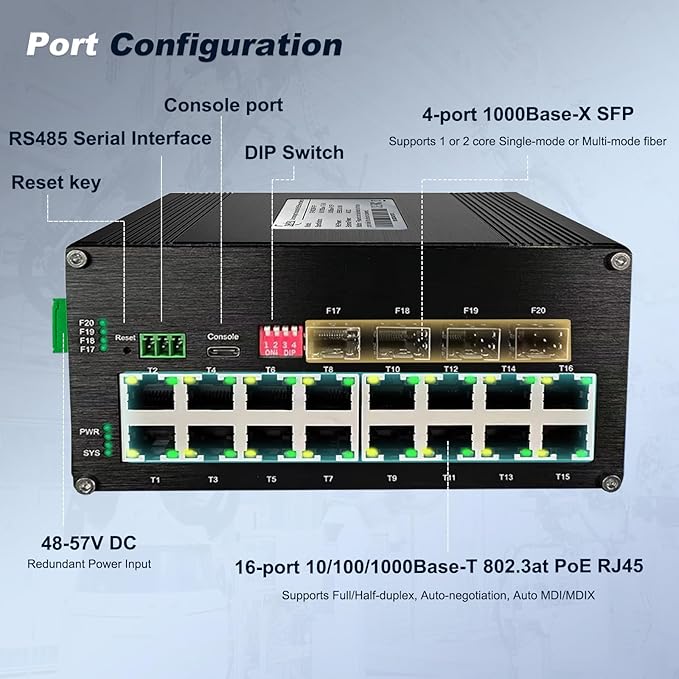

Overview: It is the L2+ managed 16-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 16 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations. Features: 1. Support 16x10/100/1000Base-T + 4x1000Base-X SFP + 2. 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX 3. IEEE802.3af/at compliant 4. DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network 5. Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all 6. 10K Bytes Jumbo Frame 7. IEEE 802.3az Energy Efficient Ethernet (EEE) 8. 48-57VDC Redundant Power Input 9. Industry standard design, dust-proof and close design IP40 Aluminum Case 10. Supports DIN-Rail installation 11. Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature Specification: 1. Connector: 16 x RJ45 2. Optical Port: 4 x 1000Base-X SFP 3. Packet Buffer: 12M bits 4. Packet Length: 9K bytes 5. MAC Address Table: 10K 6. Processing Type: Store-and-Forward 7. Backplane bandwidth: 40 Gbps 8. Forward & Filtering Rate: 14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps) 9. Input Power: 48~57VDC, 6-pin terminal block 10. PoE Standard: IEEE802.3af/at 11. PoE Budget: Up to 480-watt PoE budget 12. Power Consumption: 15W Max.(PoE in Use<240W) 13. Power PIN Assignment: 1/2/4/5(+), 3/6/7/8(-) 14. Certification: CE, FCC, RoHS 15. Mounting Options: DIN-Rail 16. Casing: Aluminum Case 17. Operating Temperature: -40°C to 80°C (-40°F to 176°F) 18. Storage Temperature: -40°C to 85°C (-40°F to 185°F) 19. Dimensions (WxDxH): 155 x 115 x 85 mm 20. Weight: 1.2kg Packages: 1* 20-port Manged PoE Ethernet switch 1* 6-pin terminal block 1* USB line 1* User Manual

Product Details

Manufacturer	Xinyuanhuitong
Model	L2+ 16PoE+4SFP
Color	Black
Quantity	1
Weight	1293 g
