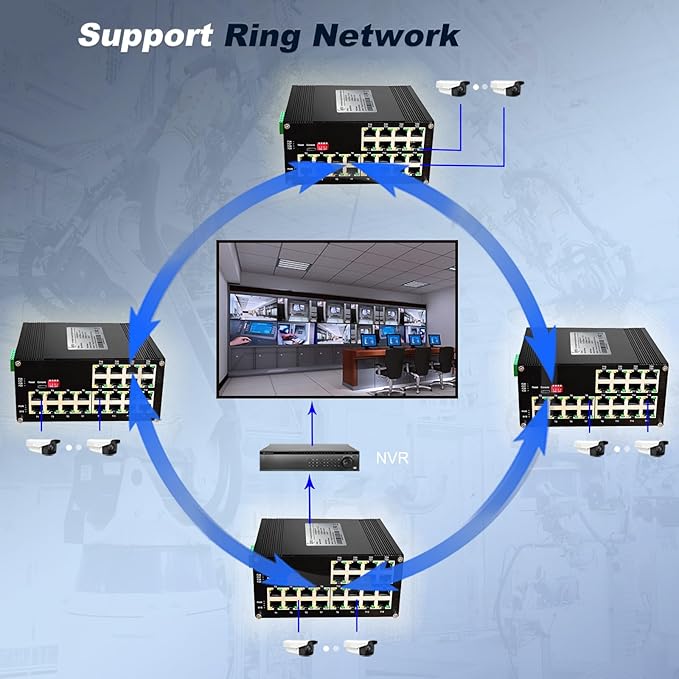

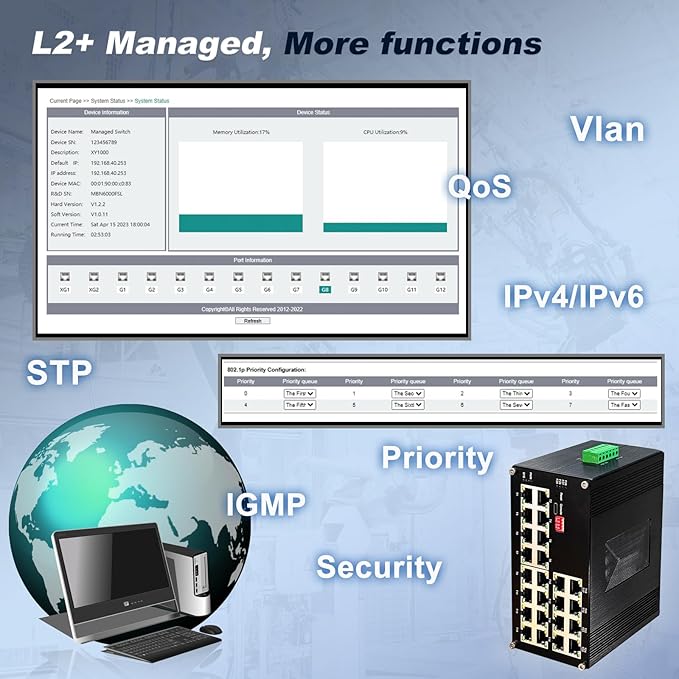

24-Port Gigabit Network Switch, L2+ Managed PoE Ethernet Switch, Support IEEE802.3af/at, Ring Network, VLAN, IPv4/IPv6 Management, Plug and Play, Din-Rail Design

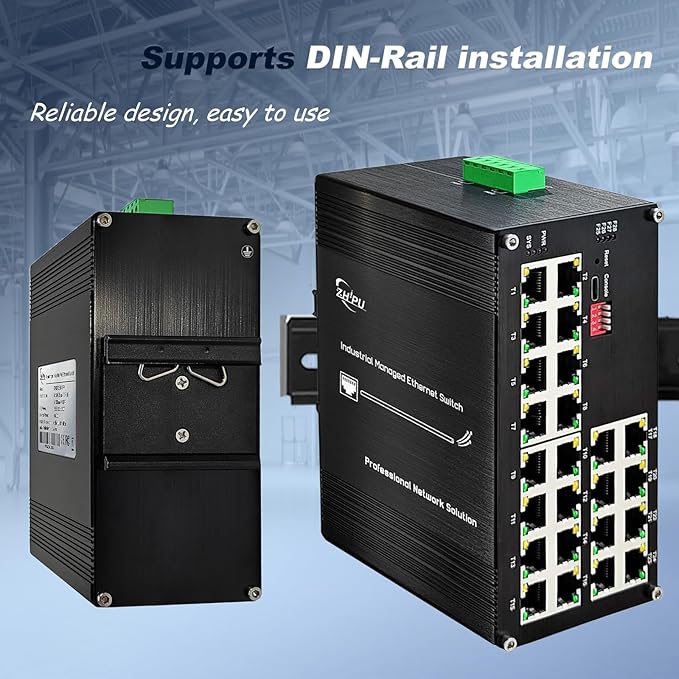

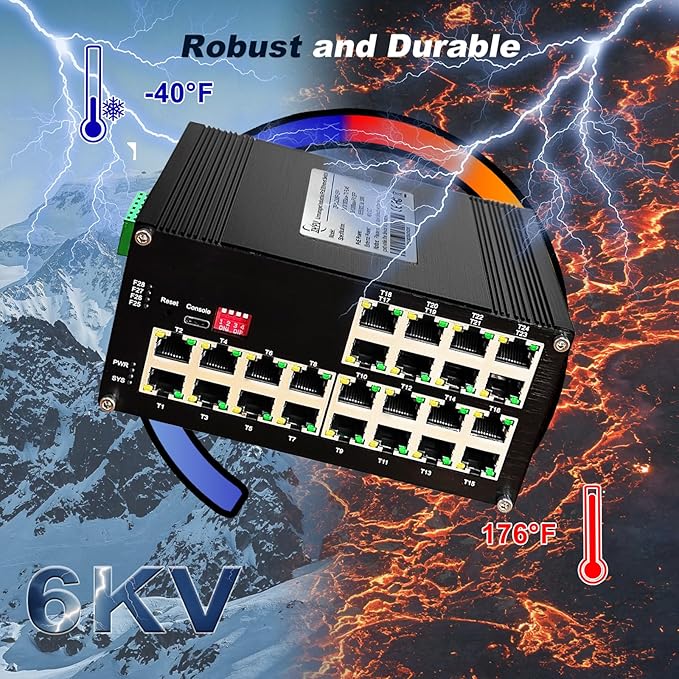

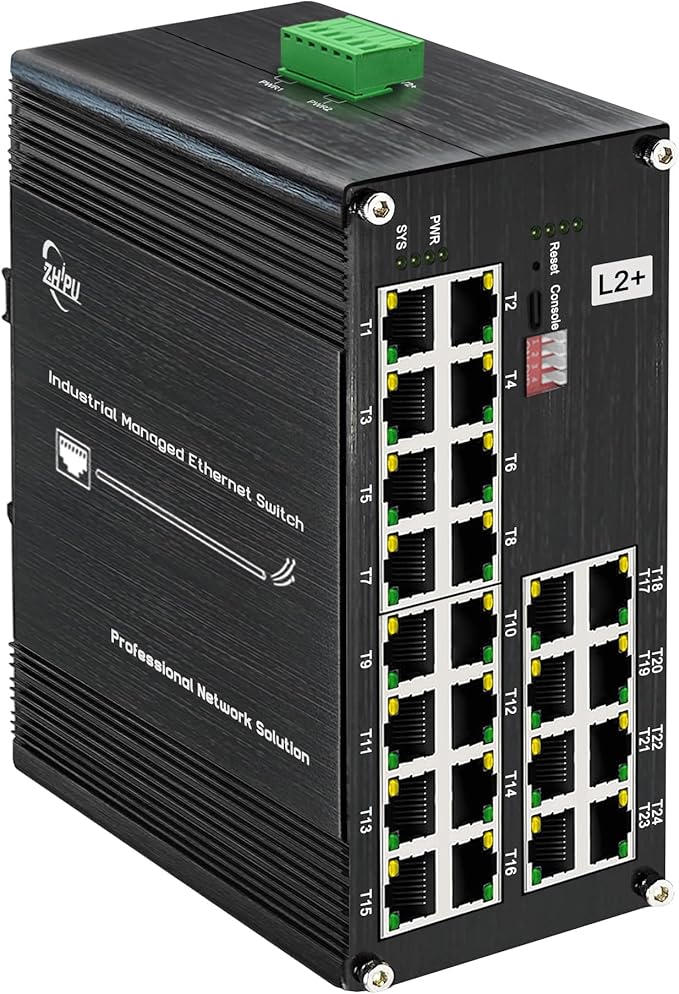

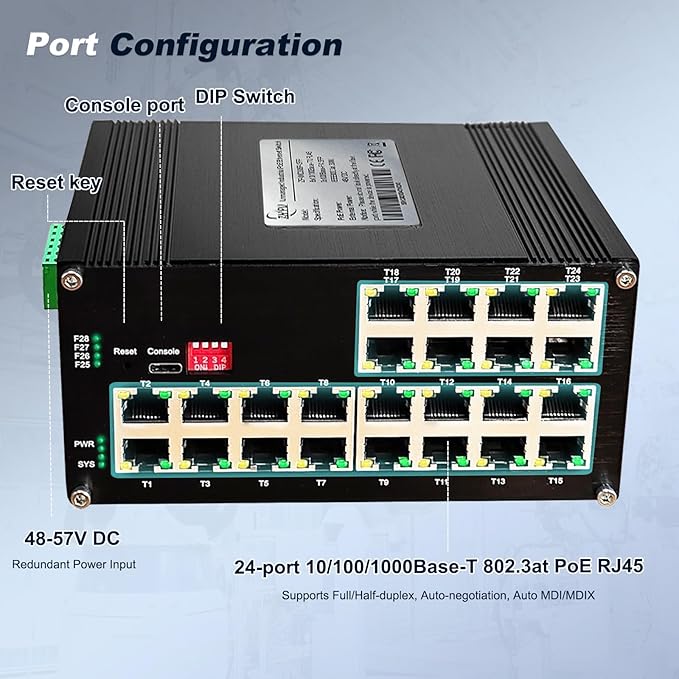

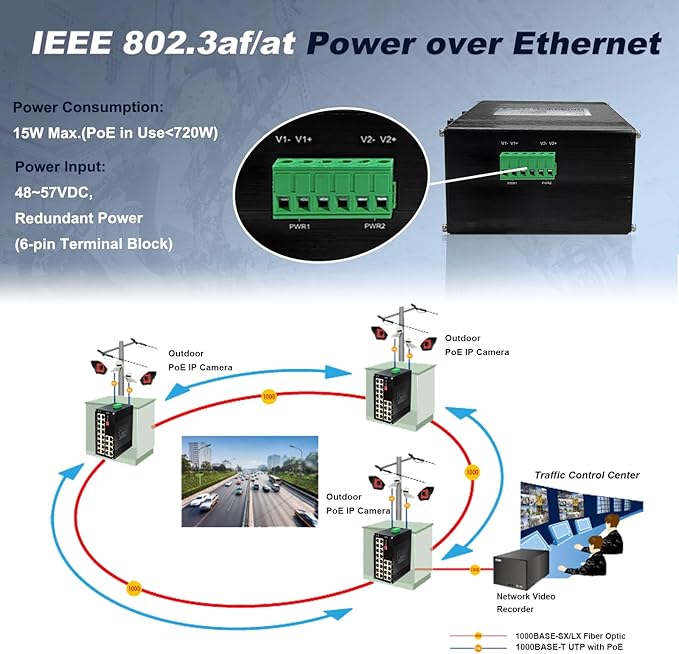

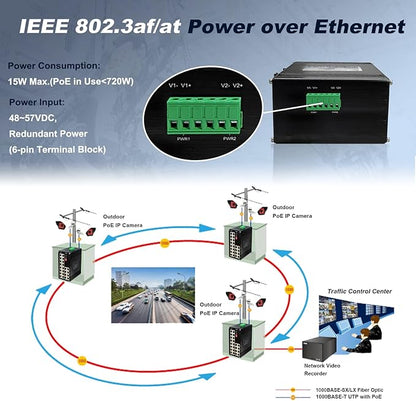

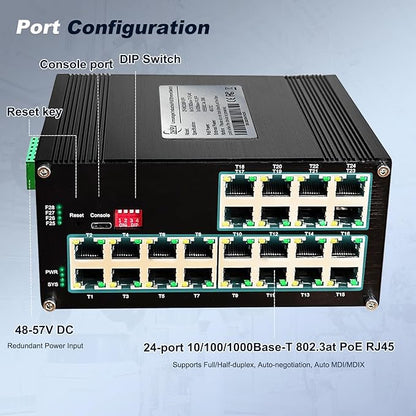

Overview: It is the L2+ managed 24-port 10/100/1000Base-T 802.3at PoE SFP hardened Ethernet switch. The switch has 24 TP ports and the TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations. Features: 1. Support 24x10/100/1000Base-T 2. 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX 3. IEEE802.3af/at compliant 4. DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network 5. Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all 6. 10K Bytes Jumbo Frame 7. IEEE 802.3az Energy Efficient Ethernet (EEE) 8. 48-57VDC Redundant Power Input 9. Industry standard design, dust-proof and close design IP40 Aluminum Case 10. Supports DIN-Rail installation 11. Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature Specification: 1. Connector: 24 x RJ45 2. Packet Buffer: 12M bits 3. Packet Length: 10K bytes 4. MAC Address Table: 8K 5. Processing Type: Store-and-Forward 6. Backplane bandwidth: 48 Gbps 7. Forward & Filtering Rate: 14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps) 8. Input Power: 48~57VDC, 6-pin terminal block 9. PoE Standard: IEEE802.3af/at 10. PoE Budget: Up to 720-watt PoE budget 11. Power Consumption: 15W Max.(PoE in Use<720W) 12. Power PIN Assignment: 1/2/4/5(+), 3/6/7/8(-) 13. Certification: CE, FCC, RoHS 14. Mounting Options: DIN-Rail 15. Casing: Aluminum Case 16. Operating Temperature: -40°C to 80°C (-40°F to 176°F) 17. Storage Temperature: -40°C to 85°C (-40°F to 185°F) 18. Dimensions (WxDxH): 155 x 115 x 85 mm 19. Weight: 1.2kg Packages: 1* 24-port Managed PoE Ethernet switch 1* 6-pin terminal block 1* USB line 1* User Manual

Product Details

Manufacturer	Xinyuanhuitong
Model	L2+ 24PoE
Color	Black
Quantity	1
Weight	1814 g
