AVMATRIX SC7030 Multi-Signal Converter, SDl/HDMl/DVI-I/VGA/CVBS/S-Video/YPbPr to HDMI/SDI, 1080P Video Converter, UP/Down Scaling SDI Splitter, Audio Embedding & Aspect Ratio Adjustment

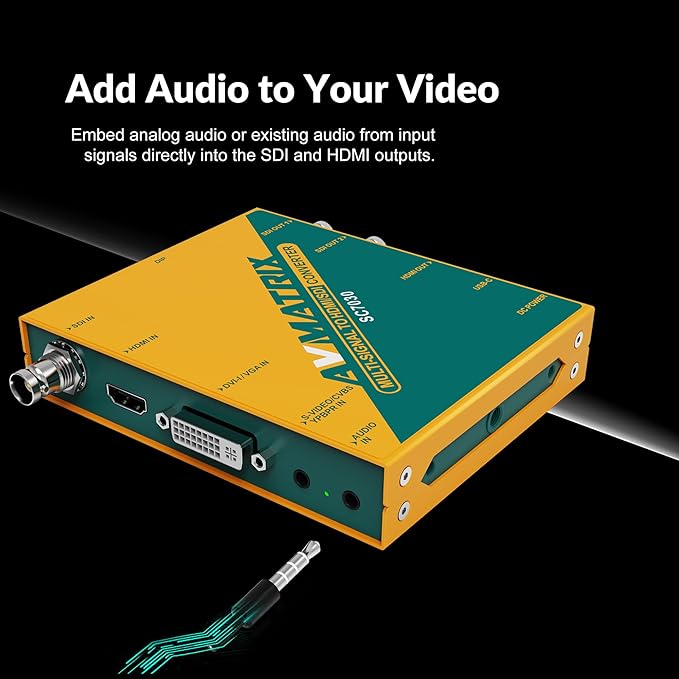

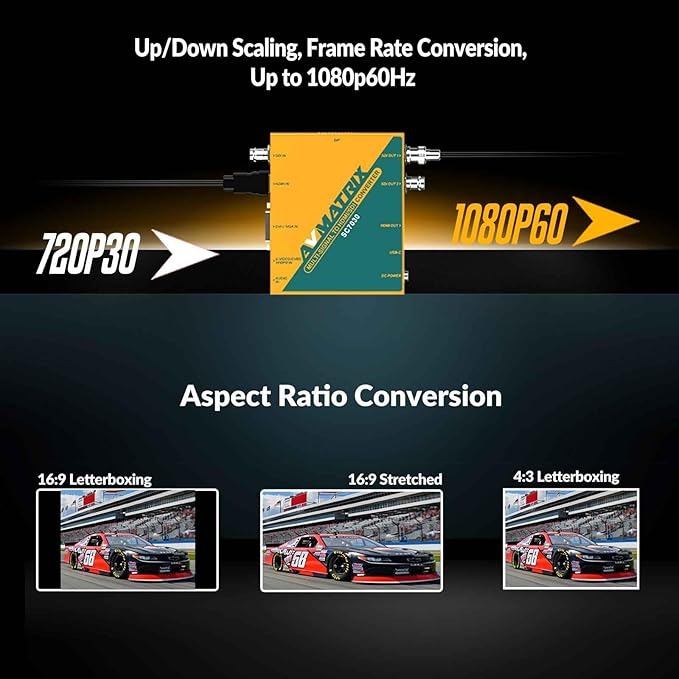

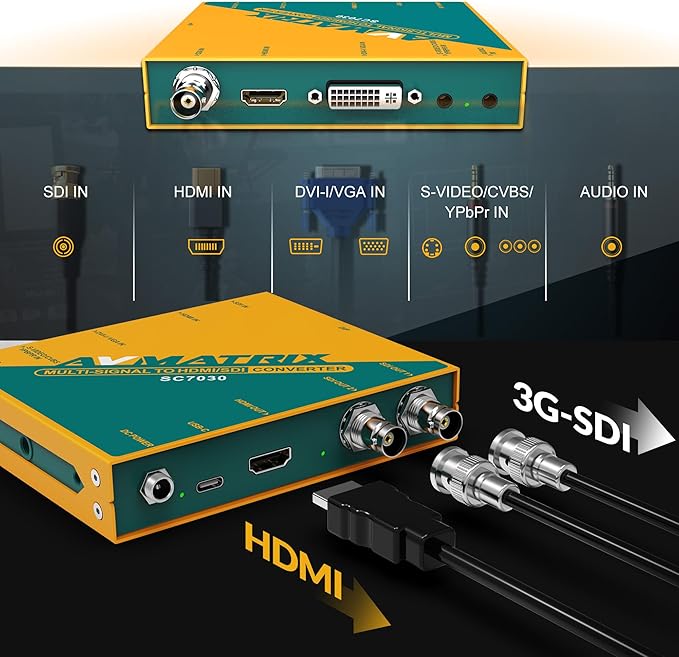

AVMATRIX SC7030 is a professional multi-signal to HDMI/SDI cross converter designed for broadcast, AV production, medical imaging, live streaming, and commercial presentation systems, supporting input signals including SDI, HDMI, DVI-I, VGA, CVBS, S-video, and YPbPr to seamlessly convert to 2×SDI and 1×HDMI simultaneous outputs. It supports up/down scaling and frame rate conversion with output resolutions up to 1080p60, and is fully compatible with 3G-SDI Level A and Level B standards to meet professional broadcast requirements. Equipped with a 3.5mm analog audio input for flexible audio embedding, it allows users to switch between embedded audio and external analog audio via DIP switches, while supporting hardware deinterlacing for 1080i signals to deliver sharper and more stable images. This all-in-one converter offers easy control through onboard DIP switches for quick setup of output format, input source, aspect ratio, color space, and 3G-SDI level, or advanced configuration via USB Type-C for firmware updates and PC software control. Built with a compact metal structure, wide operating temperature range from -20°C to 60°C, and dual power support via DC 6–24V and USB 5V, it ensures stable 24/7 operation with low power consumption. Compatible with professional cameras, switchers, monitors, medical displays, recorders, and broadcast equipment, the AVMATRIX SC7030 multi-format converter is the ideal universal solution for signal interconnection, format conversion, and long-term reliable use in professional AV, medical, and broadcast environments.

Product Details

Manufacturer	AVMATRIX
Model	SC7030
Color	Multicolor
Quantity	9
EAN	6971118003051
Weight	800 g
