AVMATRIX SDI/HDMI Up/Down/Cross Converter, DlP Switches, SD/HD/3G-SDI Scaling Frame Rate Conversion Scaler, 3.5mm Jack Audio Embedding, Auto Signal Detection SC2030

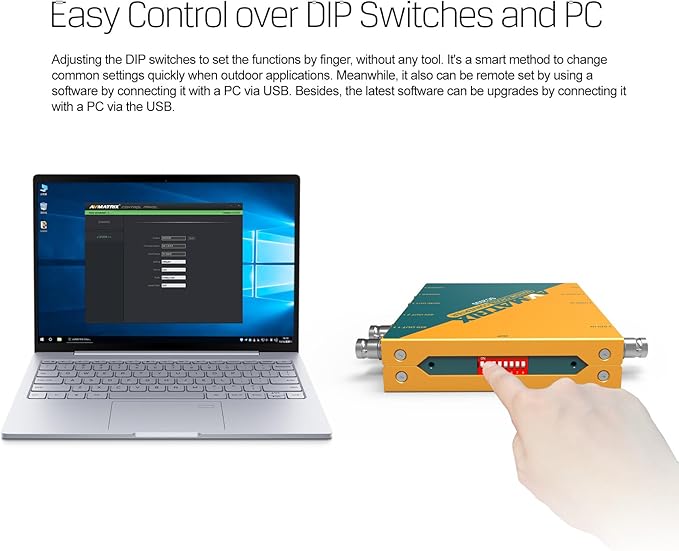

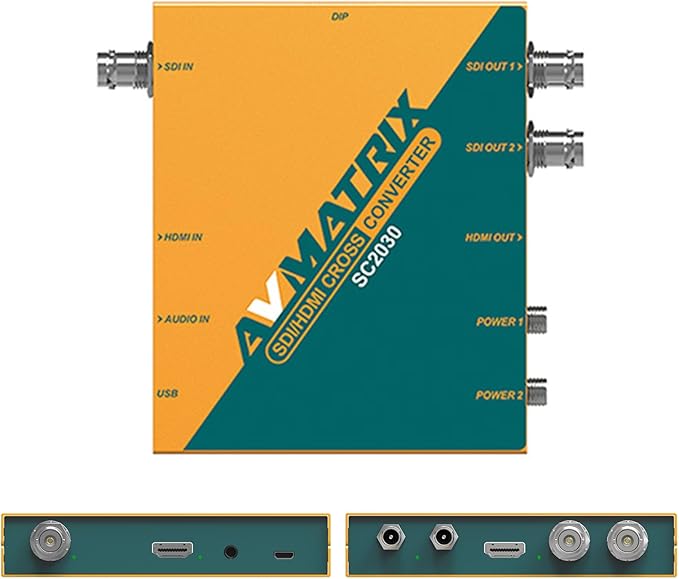

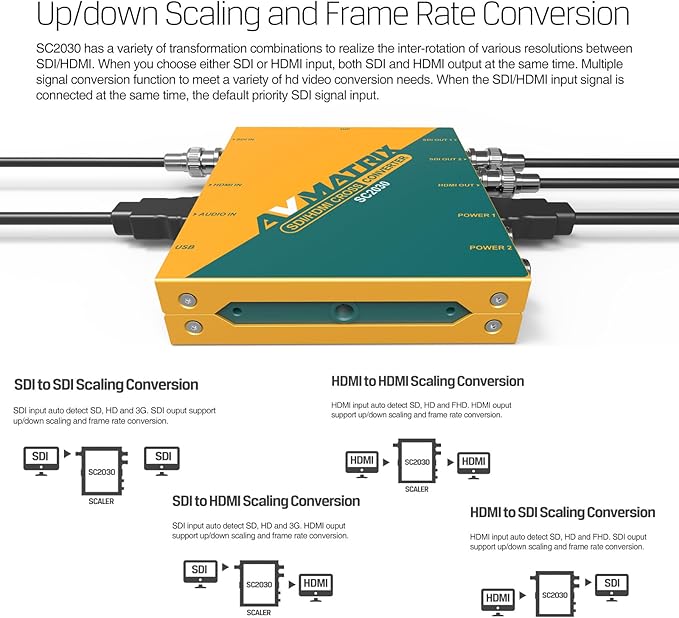

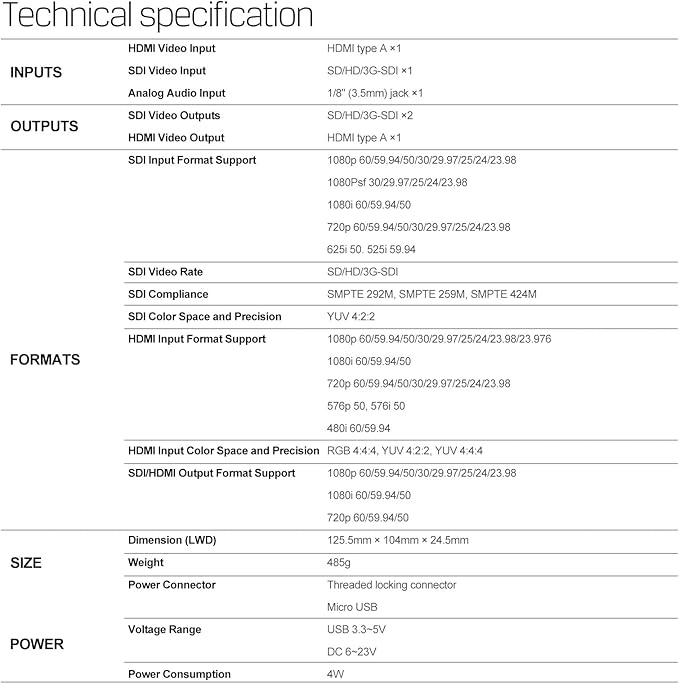

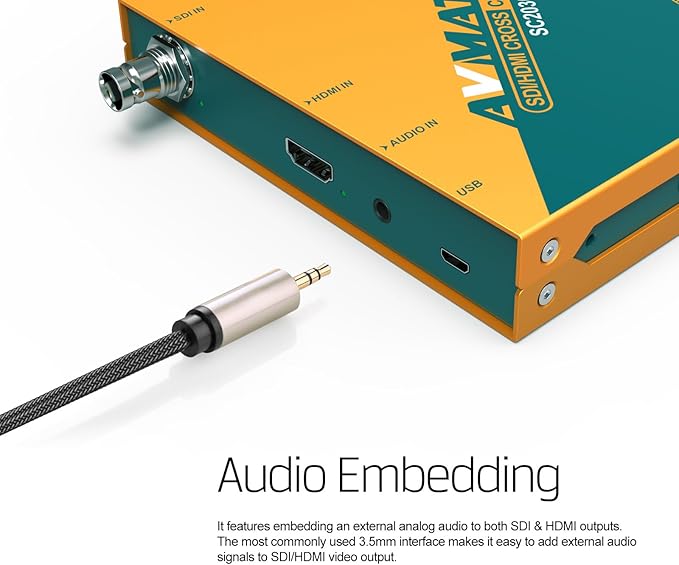

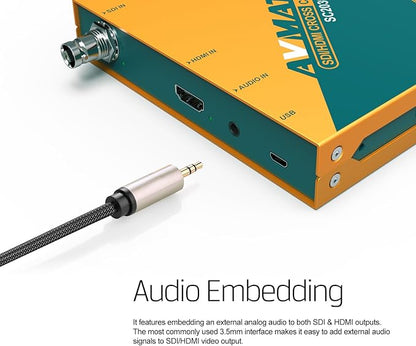

AVMATRIX SC2030 is a professional SDI/HDMI cross converter built for broadcast, live streaming, AV production, post‑production, and commercial presentation systems. It supports bidirectional signal conversion between SDI and HDMI, with built‑in up/down scaling and frame rate conversion to deliver stable, high‑quality video output for all SD/HD/3G‑SDI and HDMI formats up to 1080p60. This converter comes with 1×SDI input, 1×HDMI input, 2×SDI outputs, 1×HDMI output, and a 3.5mm analog audio input for flexible audio embedding, allowing users to switch between embedded video audio and external analog audio easily via DIP switches. It supports a full range of video formats including 1080p60/59.94/50, 1080i, 720p, 576i/p, and 480i/p, and is fully compliant with SMPTE 292M, 259M, and 424M professional standards, providing precise color processing with SDI YUV 4:2:2 and HDMI RGB 4:4:4/YUV 4:2:2/YUV 4:4:4 to preserve original image clarity and color accuracy. It offers two control methods: quick hardware setup via onboard DIP switches for output format, input source, audio embedding, and SD aspect ratio adjustment, or advanced configuration via micro USB with PC software to meet different on‑site and remote control needs. Equipped with dual power input (DC 6–24V and micro USB 5V) and a rugged metal chassis, it runs reliably in temperatures from ‑20°C to 60°C and supports stable 24/7 operation in professional environments. Compact, durable, and highly compatible with video switchers, cameras, monitors, recorders, and broadcast equipment, the AVMATRIX SC2030 SDI/HDMI converter is the ideal all‑in‑one solution for AV integrators, broadcasters, live streamers, and post‑production teams looking for stable signal conversion, scaling, and audio embedding in a compact design.

Product Details

Manufacturer	AVMATRIX
Model	SC2030
Color	Green
Quantity	1
EAN	6971118003150
Weight	1000 g
