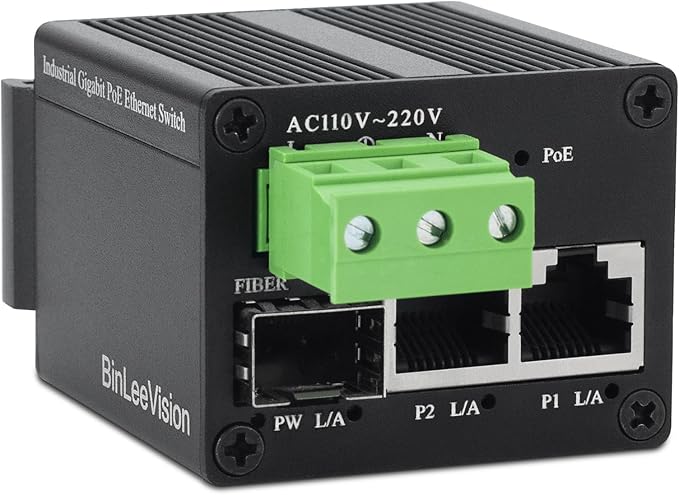

BinLeeVision 3-Port Gigabit PoE+ Switch, 2×40W PoE RJ45 Per Port, 1G SFP Uplink, Industrial Unmanaged, 6KV Surge Protection, Fanless Metal, DIN Rail/Wall/Desktop Mount, -40°C to 75°C, Plug & Play

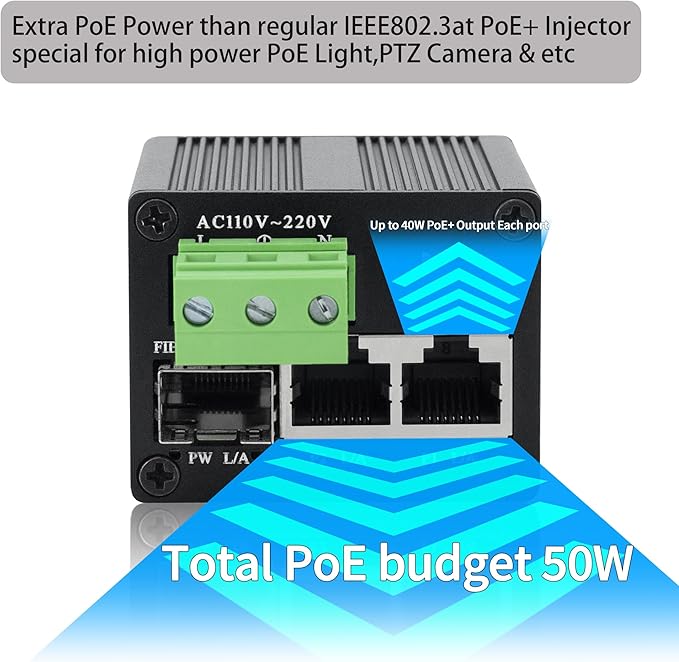

• 40W PoE+ Output:Supports IEEE 802.3at/af PoE+ on both RJ45 ports. Up to 40W per port (when used alone) or 50W total (both ports active). Powers high-consumption devices like PTZ cameras, wireless APs, Raspberry Pi (with PoE HAT), and PoE splitters. Backward compatible with 15W/30W devices.

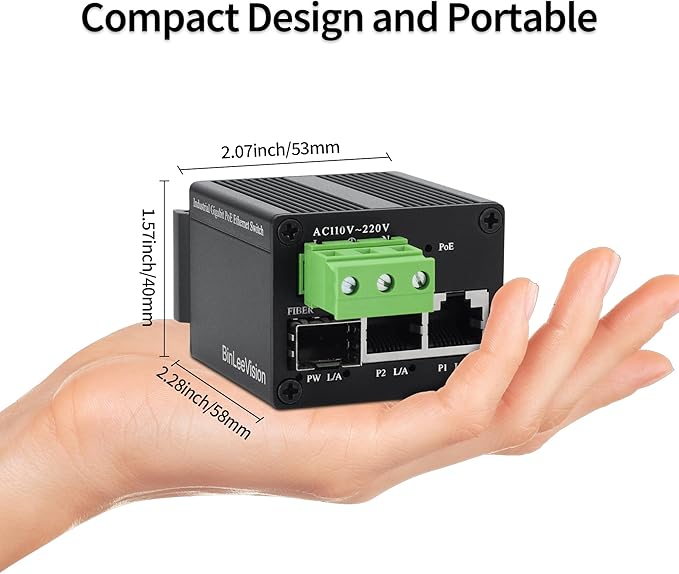

• Ultra-Compact Size:Dimensions: only 2.07” x 1.57” x 2.28” (52.5x40x58mm) – smaller than a mouse. Weighs just 0.33 lbs (0.15kg). Fits easily inside camera junction boxes, distribution cabinets, or outdoor enclosures. Saves 50% installation space compared to traditional PoE switches.

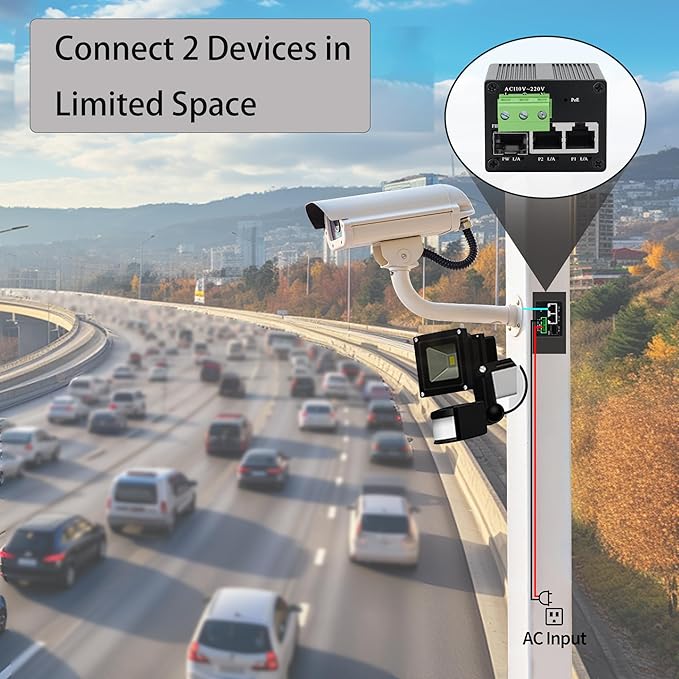

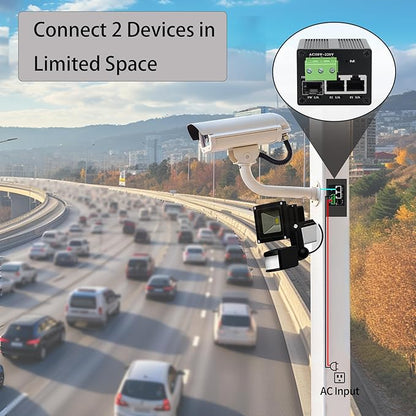

• -40°C to 75°C Toughness:Industrial-grade durability with IP40 aluminum alloy housing, 6KV lightning protection, and fanless passive cooling. Operates reliably in harsh conditions: outdoor poles, factory floors, substations, highway surveillance, cold storage, and dusty environments. MTBF 200,000 hours.
• Gigabit SFP Fiber Uplink:1 x Gigabit SFP slot supports multi-mode (up to 550m) and single-mode (up to 20km+) fiber modules. Breaks through 100m copper cable limit. Ideal for building-to-building connections, remote surveillance, and campus networks. 9K jumbo frame support ensures smooth 4K/8K video streaming.

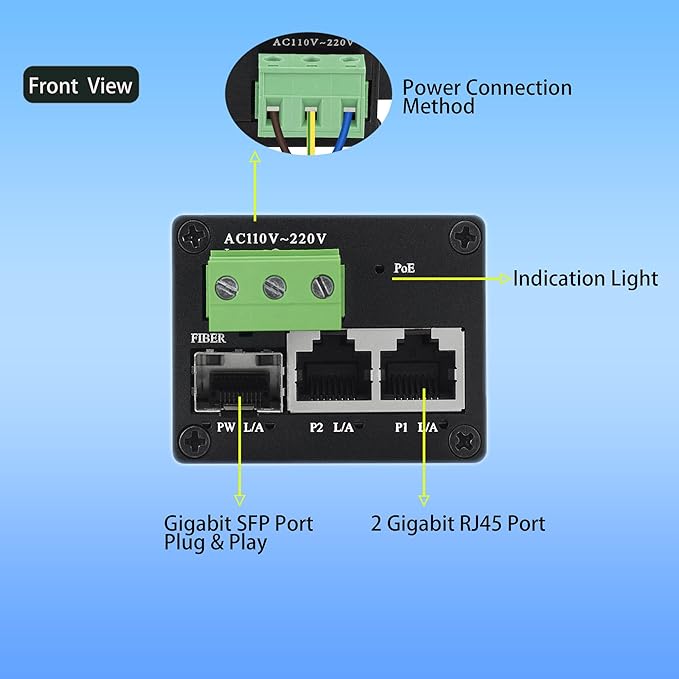

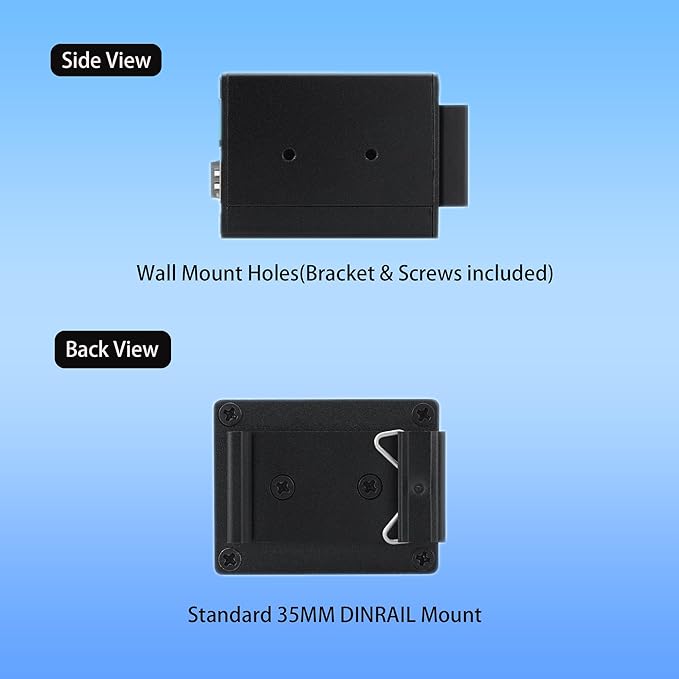

• Direct AC Input – No Adapter:Accepts 85-250V AC universal voltage via terminal block. No bulky external power supply – more reliable and space-saving. Auto-resettable overload protection. Supports DIN rail, wall mount, or desktop installation. Plug-and-play, no configuration required.

Product Details
